Every 100 Hours - Roller Drive Gear Case (1465 Only)

IMPORTANT: Change the oil in the roller drive gear case every 100 hours of operation or at the start of each season, whichever comes first.

Draining the Roller Drive Gear Case

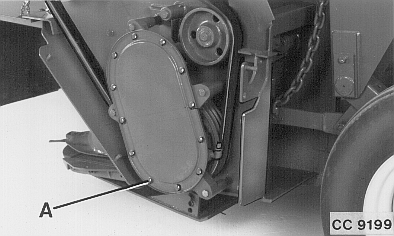

Drain the oil while it is hot (i.e after operation). With machine horizontal in both directions, pull out drain plug (A) and drain the oil into a suitable receptacle.

Clean drain plug (A) before putting it back.

A-Drain plug

OUCC006,0000F4F -19-26AUG05-1/2

Refilling the Roller Drive Gear Case

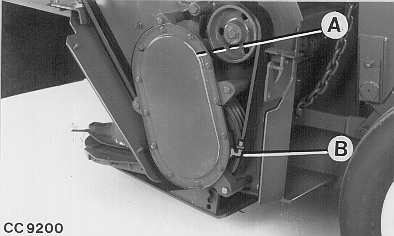

Pull out filler plug (A) and level plug (B). Add 0.5 liters (0.132 US gal) of oil. Use a type specified under "Gear Case Oil".

Check the oil level at level plug bore.

Put plugs (A) and (B) back in place.

A-Filler plug
B-Level plug

OUCC006,0000F4F -19-26AUG05-2/2
