Hydraulic Tongue Positioning

CAUTION: The tongue position may change suddenly with hydraulic control. Avoid any personal injury and/or machine damage by placing the hydraulic flow control in "slow" position.

As an option, the mower-conditioner may be equipped with a hydraulic cylinder (A) for tongue positioning. This equipment requires a tractor equipped with one double-acting selective control valve.

Adjust length of hydraulic cylinder (A) by means of rod end (B) so that tongue (C) does not touch transport lock pin (D).

NOTE: Ends of hydraulic cylinder (A) must be attached to the correct holes depending on the mower-conditioner model.

If the hydraulic cylinder is connected to the incorrect holes, it will not be possible to properly align tongue and tractor-to-windrow distance will not be correct.

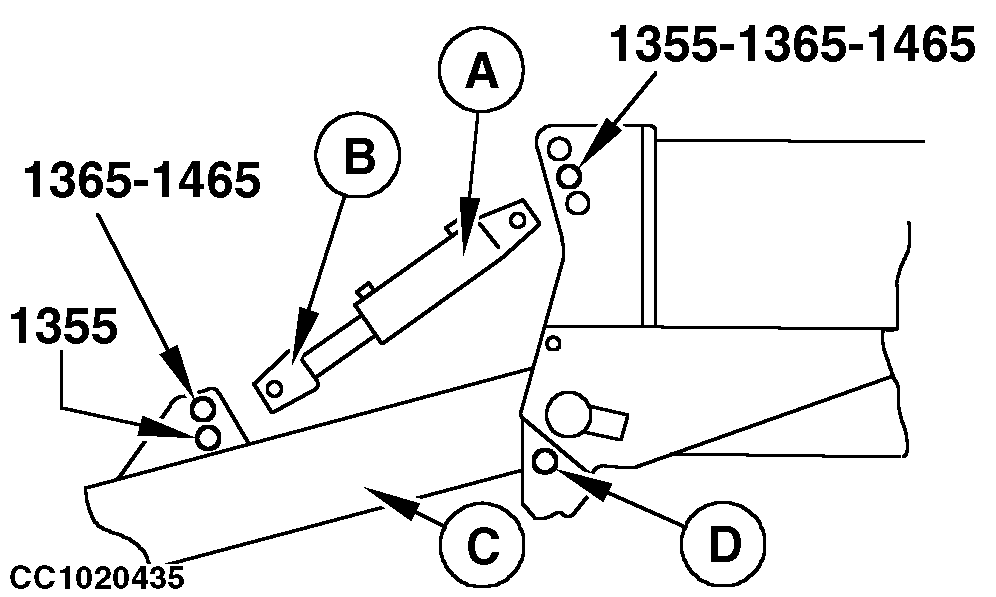

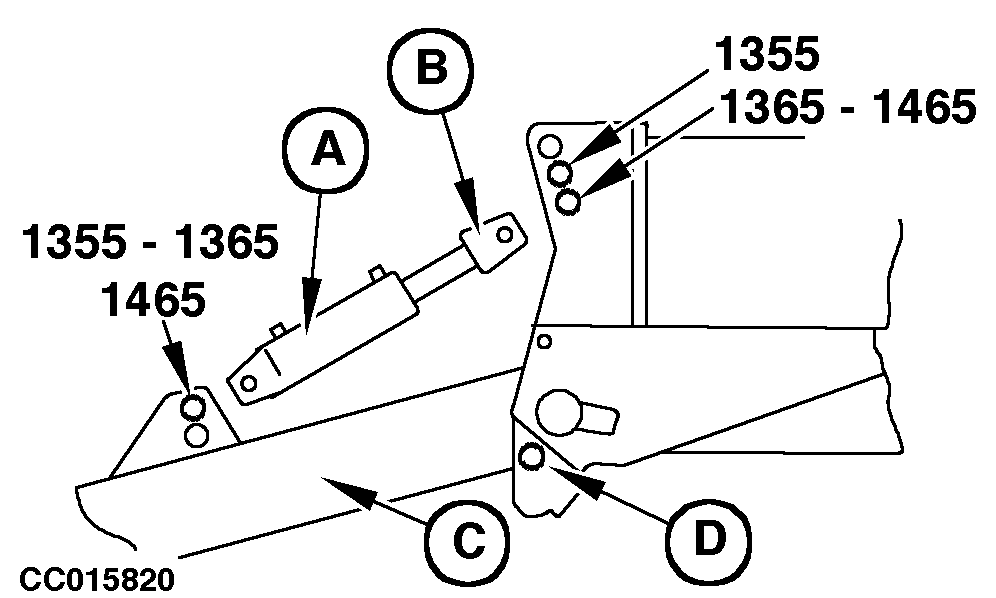

A-Hydraulic cylinder
B-Hydraulic cylinder rod end
C-Tongue
D-Transport lock pin
