Connecting Electrical Harness

IMPORTANT: All electrical equipment installed on the mower-conditioner is designed for use on 12 Volt electrical systems with negative ground.

Connecting Road Light Wiring Harness (If Equipped)

The road light wiring harness of mower-conditioner and endwise transport system comply with 1724 ISO standard.

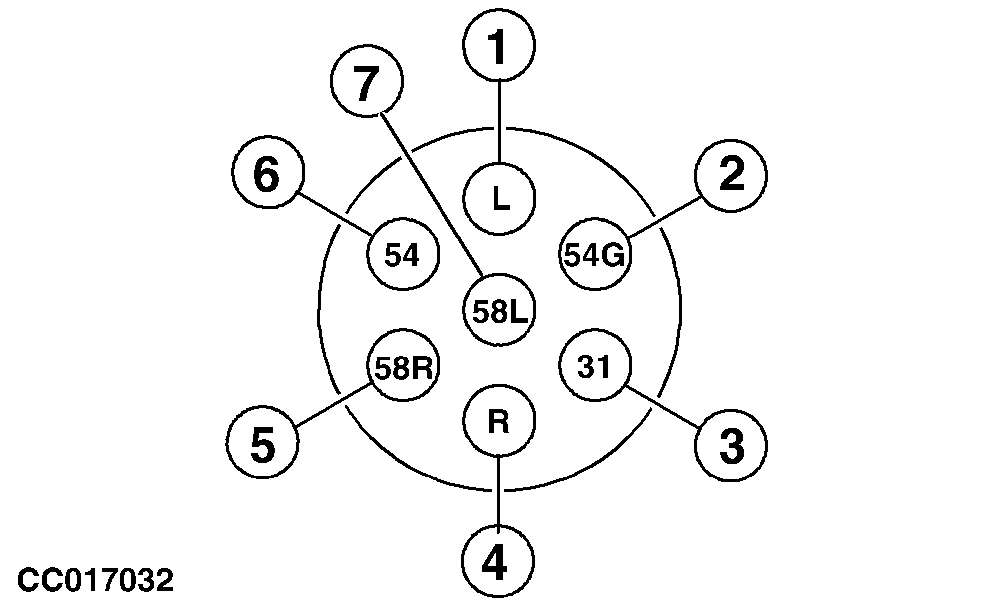

Terminal Function Reference
1 Left-Hand Turn Signal Light L
2 - 54G
3 Ground 31
4 Right-Hand Turn Signal Light R
5 Right-Hand Tail Light 58R
6 Brake Lights 54
7 Left-Hand Tail Light 58L



Connect light harness plug from the mower-conditioner to seven terminal outlet on tractor.

Connecting Grouper Electro-Hydraulic Lift (If Equipped)

Connect the electro-hydraulic lift valve wiring harness to the button wiring harness installed on selective control lever.

Connecting Powered Windrow Deflectors (If Equipped)

Connect the electrical cylinder wiring harness to the windrow deflector control switch wiring harness installed on the tractor cab.

Connecting Grouper Canvas Speed Remote Control (If Equipped)

Connect the canvas speed remote control wiring harness to the control switch installed on the tractor cab.

CC017031

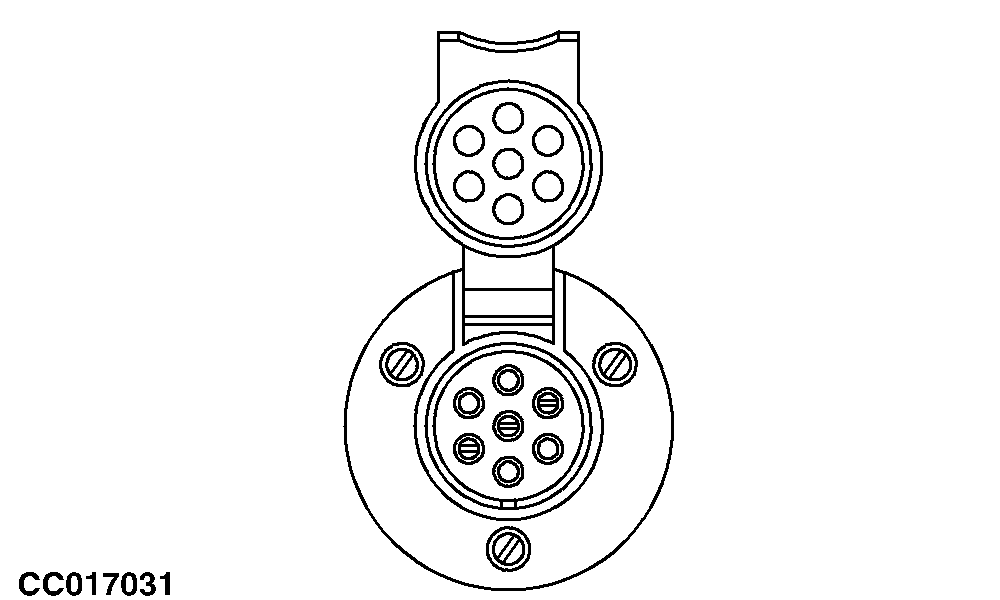

Tractor 7-Terminal Outlet

CC017032

OUCC006,0000F7C -19-19SEP05-1/1
