Replacing Rotor Tines (Assembly with Pin and Cotter Pin)

IMPORTANT: Do not use the machine if tines are missing. This will cause rotor imbalance and therefore vibrations, damaging the bearings.

56 tines are used on 1365 and 49 on 1355 mower-conditioner.

2. Check pin (B) for damage. If necessary, replace pin (B) and cotter pin (C) by one bolt with lock nut. (See "Replacing Rotor Tines" in this Section.)

3. Check inner bushing of tine (A). Replace bushing and tine if necessary.

4. Reinstall tine (A).

5. Secure pin (B) with new cotter pin to avoid the risk of loss.

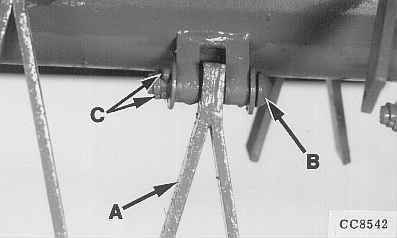

A-Tine
B-Pin
C-Cotter pin

OUCC006,0000FDA -19-25NOV05-1/1
