Loading Front Twine Box (Baler Without Side Twine Box)

1. Open right-hand door.

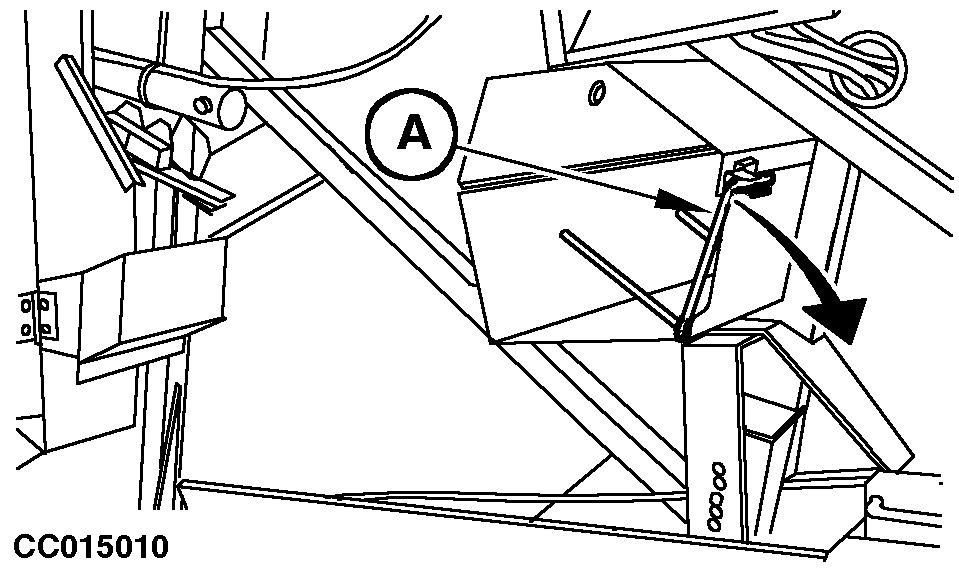

2. Lower the ball separator lever (A) so that six balls (B) of good quality twine can be inserted in twine box compartment (C). Be sure twine is pulled from end of the ball marked "top".

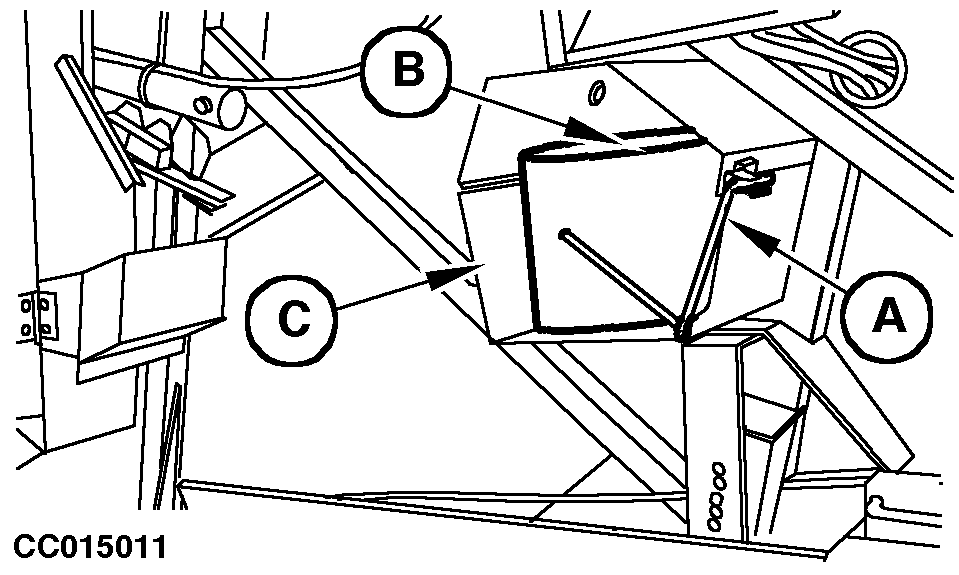

3. Raise ball separator lever (A) so that balls are well maintained in position.


A-Lever
B-Twine ball
C-Twine box compartment

CC015010
CC015011

CC03745,0000233 -19-05JUL01-1/1
