Loading Twine Boxes (Baler With Side Twine Box)

1. Open right-hand door.

2. Lower ball separator lever (A).

3. Insert six balls (B) of good quality twine in front twine box compartment (C). Be sure twine is pulled from end of the ball marked "top".

4. Raise ball separator lever (A) so that balls are well maintained in position.

5. Depending on side twine box capacity, insert two or four balls (B) of good quality twine in side twine box (D) compartments. Be sure twine is pulled from end of the ball marked "top".

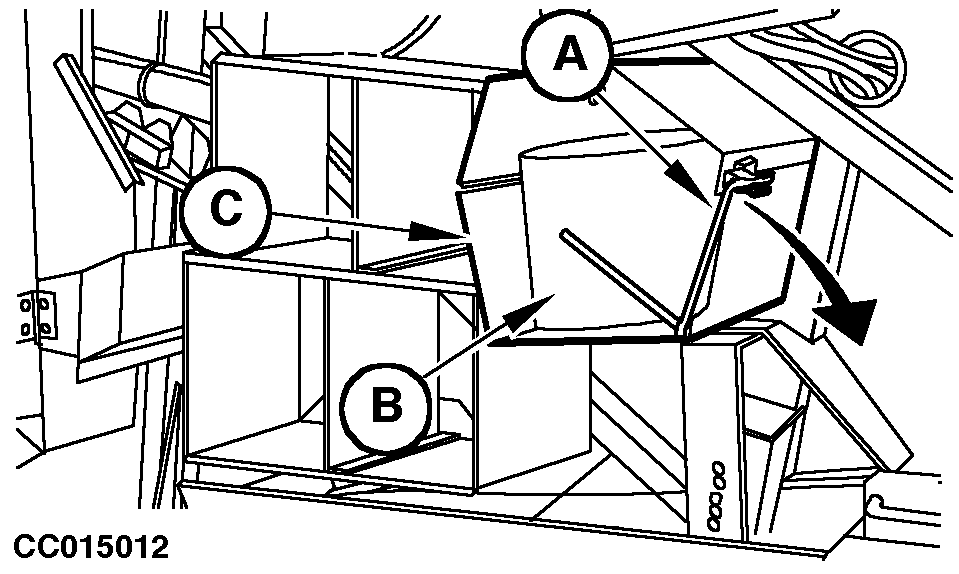

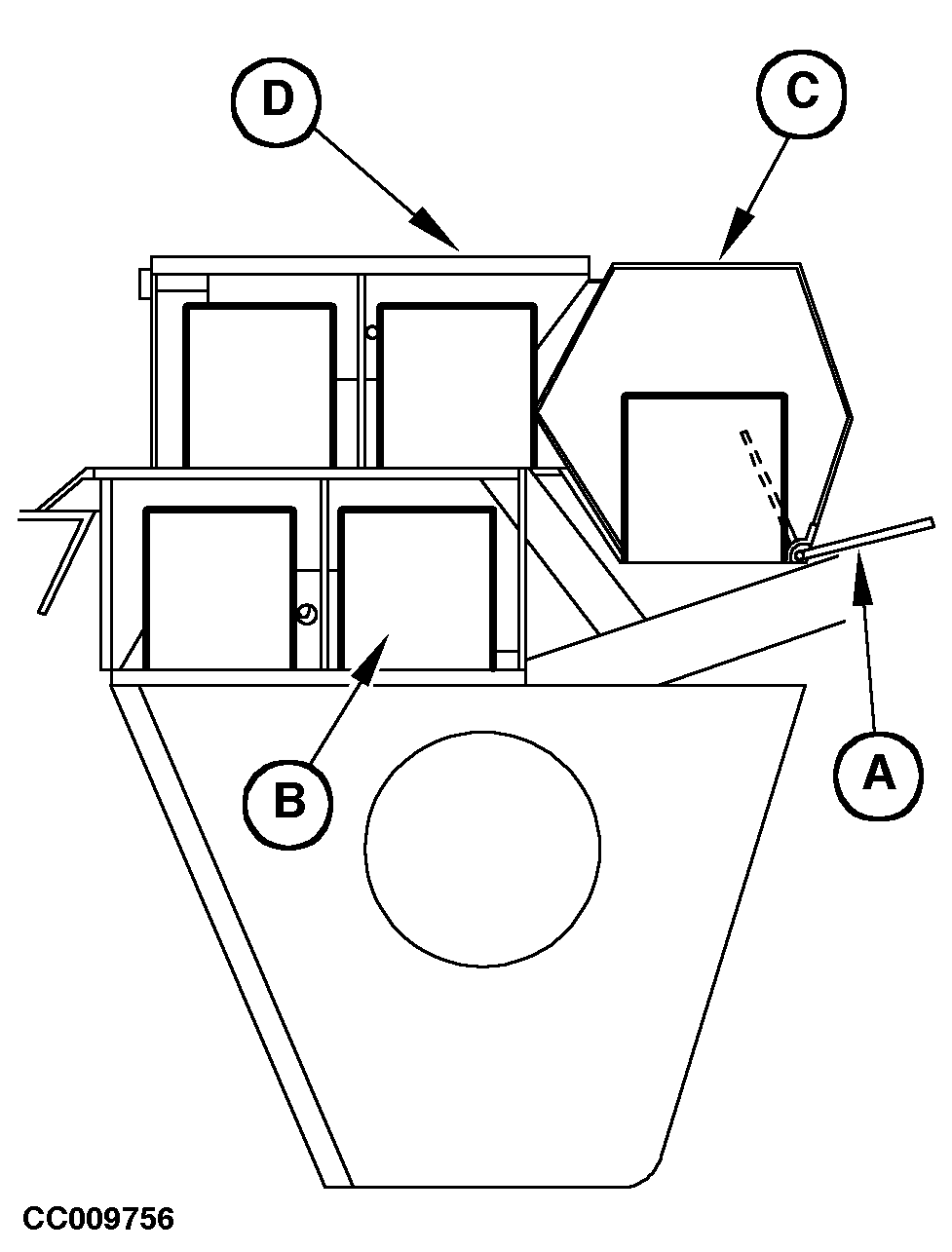

A-Lever
B-Twine ball
C-Front twine box compartment
D-Side twine box

CC015012
CC009756

CC03745,0000234 -19-05JUL01-1/1
