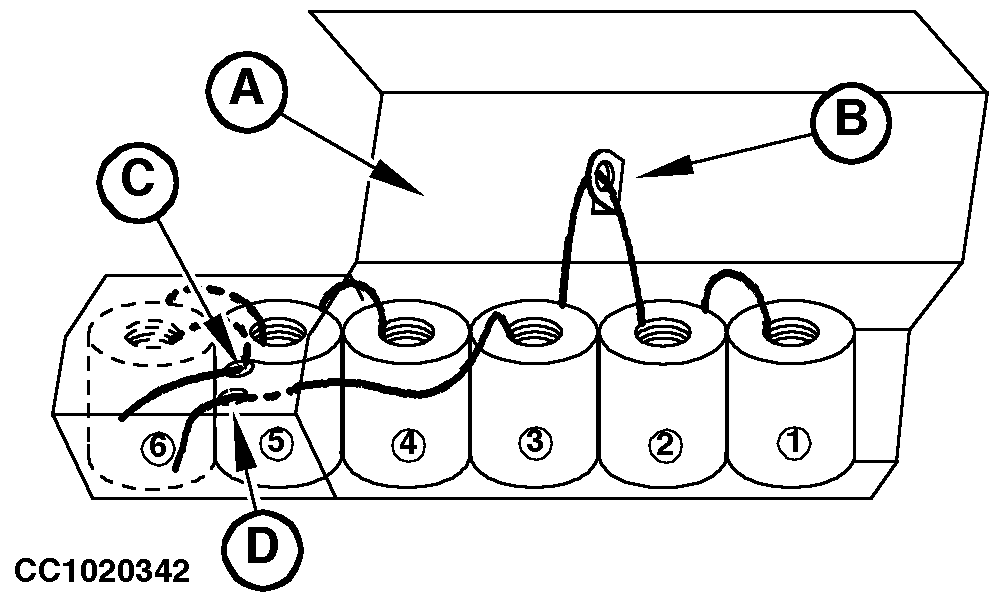

Routing Twine out of Twine Box for Double Twine Tying (Baler without Side Twine Box)1. Open trash screen, then twine box cover (A).NOTE: In joining twine, use a modified square knot with sisal twine and a sheet bend knot with plastic twine. Trim loose ends of twine as close to knot as possible. 2. Pull inside twine end of the third ball through opening (D). 3. Pull inside twine end of second ball through guide (B) and join it to the outside twine end of the third ball. 4. Join the inside twine end of the first ball to the outside twine end of the second ball. 5. Pull inside twine end of the sixth ball through opening (C). 6. Join the outside twine end of the sixth ball to the inside end of the following ball, and so on up to the fourth ball. 7. Close twine box cover (A) and right-hand door. |
|
