Routing Twine out of Twine Box for Single Twine Tying (Baler without Side Twine Box)

NOTE: In joining twine, use a modified square knot with sisal twine and a sheet bend knot with plastic twine. Trim loose ends of twine as close to knot as possible.

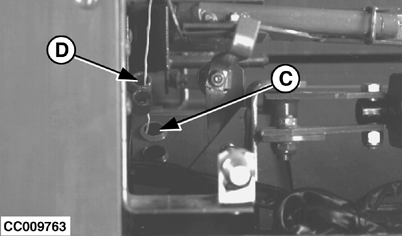

2. Pull inside twine end of the first ball of the front twine box through opening (C) and guide (D).

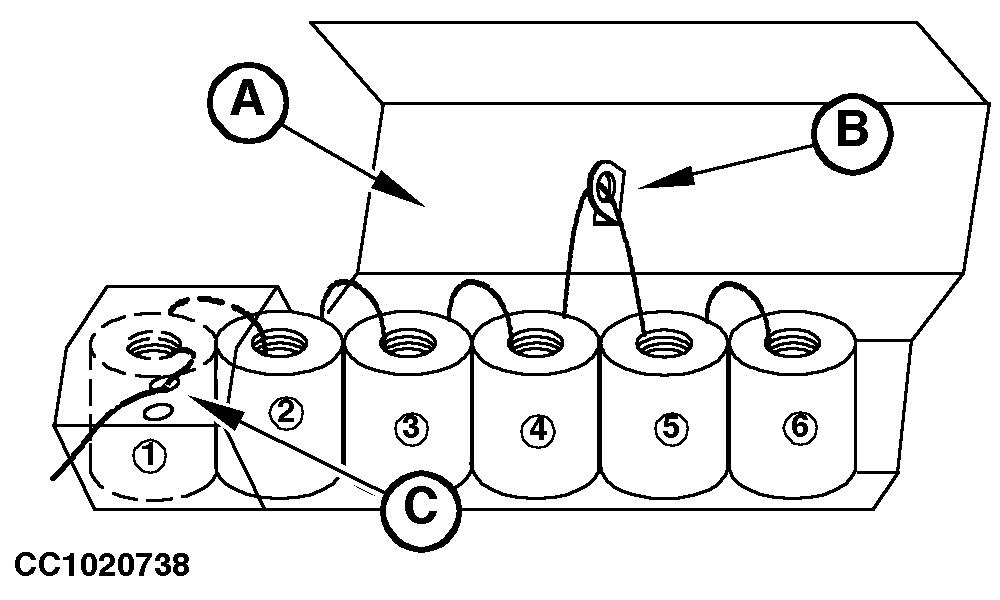

3. Join the outside twine end of the first ball to the inside twine end of the second ball, repeat this process up to the fourth ball.

4. Pull inside twine end of the fifth ball through guide (B) and join it to the outside twine end of the fourth ball.

5. Join the outside twine end of the fifth ball to the inside twine end of the last ball.

6. Close twine box cover (A) and right-hand door.

A-Cover
B-Guide
C-Opening
D-Guide
