Routing Twine from Twine Box to Twine Arm (Single Arm Double Twine Tying)

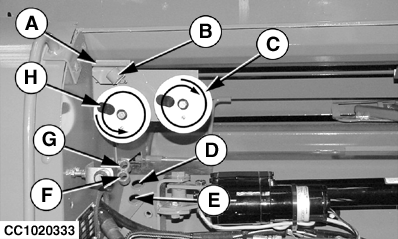

1. Route twine from opening (D) through twine guide (G), below twine tension plate (A) and make a loop counterclockwise around pulley (H).

2. Route twine from opening (E) through twine guide (F), below twine tension plate (A), through twine guide (B) and make a loop clockwise around pulley (C).


A-Tension plate
B-Twine guide
C-Pulley
D-Opening
E-Opening
F-Twine guide
G-Twine guide
H-Pulley

CC1020333

CC03745,0000238 -19-05JUL01-1/3

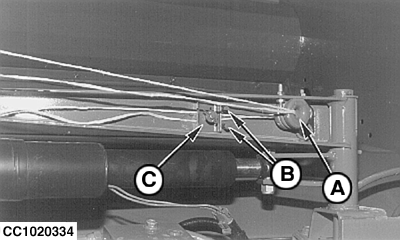

3. Route both twines through eye (A).

4. Route twines between guiding pins (B) and place them behind tension plate (C).


A-Eye
B-Guiding pins
C-Tension plate

CC1020334

CC03745,0000238 -19-05JUL01-2/3

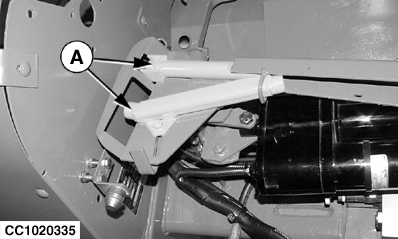

5. Thread twines through twine arm tubes (A).

There must be 300 mm (12 in.) of twine exposed from end of twine arm.
