Routing Twine from Twine Box to Twine Arm (Single Arm Single Twine Tying)

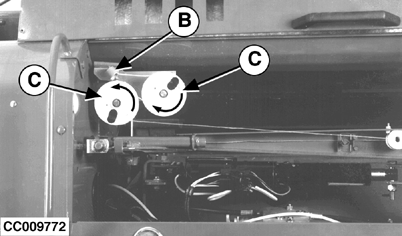

2. Route twine through twine guide (B).

3. Loop twine around pulleys (C) as shown.

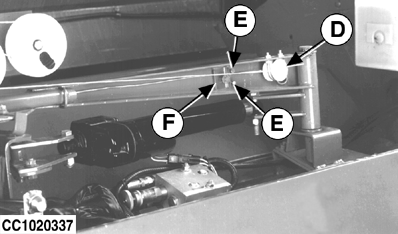

4. Route twine through eye (D).

5. Route twine between guide pins (E) and place twine behind tension plate (F) as shown.

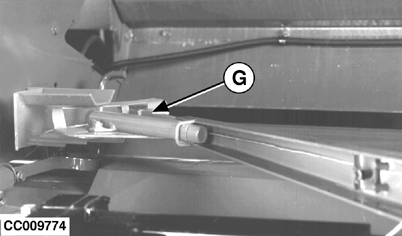

6. Thread twine through twine arm tube (G). There must be 300 mm (12 in.) of twine exposed from end of twine arm.

7. Close trash screen.

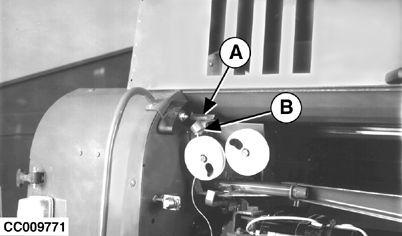

A-Tension plate
B-Twine guide
C-Pulleys
D-Eye
E-Guide pin
F-Tension plate
G-Twine arm tube

CC03745,0000239 -19-05JUL01-1/1
