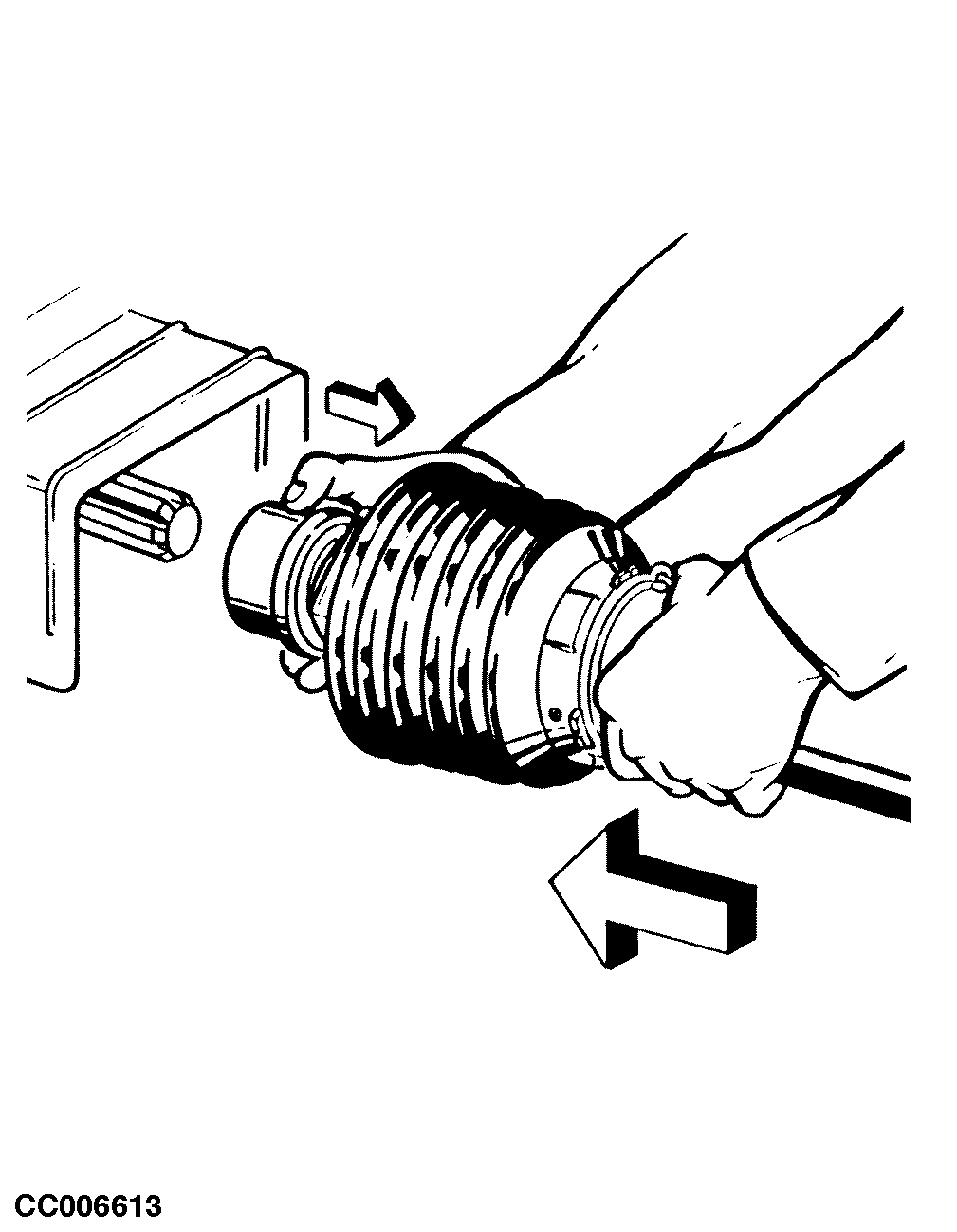

Connecting Telescoping Hook-Up to Tractor 540 RPM PTO Shaft

CAUTION: Never operate 540 rpm baler with 1000 rpm PTO.

Never attach telescoping hook-up while the tractor is running.

Never use a steel hammer to connect or disconnect the hook-up on PTO shaft.

IMPORTANT: Keep hook-up and PTO shaft splines free from paint, dirt, chaff and burrs.

Refer to the basic telescoping hook-up Operator's Manual to properly connect telescoping hook-up to the tractor PTO shaft.

CC03745,0000246 -19-05JUL01-1/1
