Adjusting Twine Arm Tube Spacing (Single Arm Double Twine Tying)

The single arm double twine tying (A) can be adjusted to allow more or less space between twines around bale.

Loosen nut (B) and push tube (C) forward or backward to allow more or less space. Tighten nut (B).

IMPORTANT: On baler equipped with BaleTrak control monitor, the distance between tubes must be the same as the twine spacing set with the monitor.

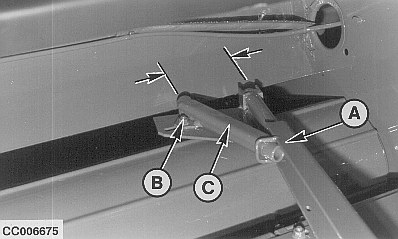

A-Single arm double twine tying
B-Nut
C-Tube

CC03745,000025D -19-09JUL01-1/1
