Resetting Mechanical Bale Counter (If Equipped)

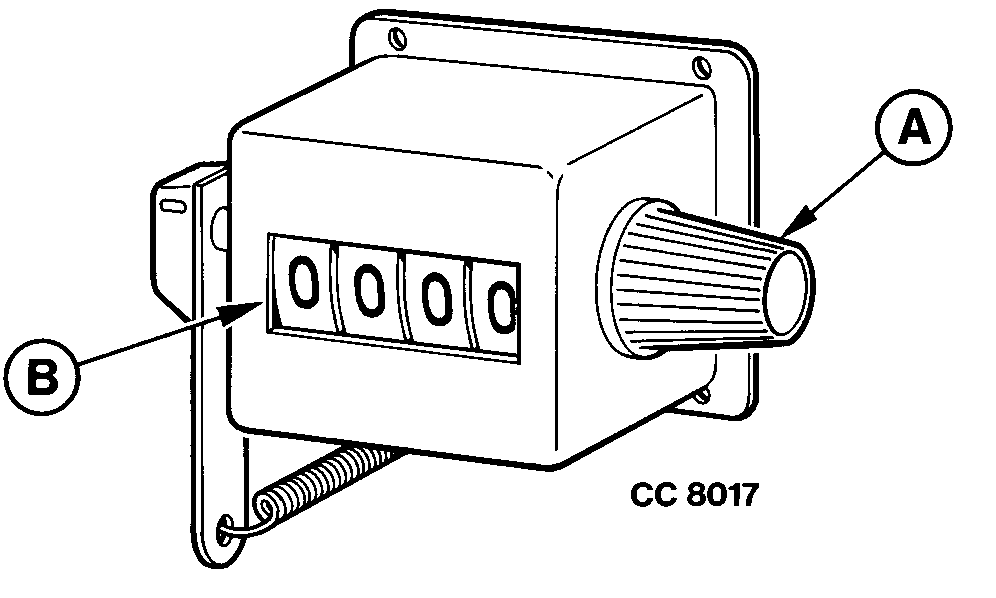

Reset bale counter by means of knob (A).

When resetting, take care to align ciphers "0" (B) perfectly, as otherwise the bale counter will not work properly.


A-Knob
B-Ciphers

CC8017

CC03745,000028F -19-27AUG01-1/1
