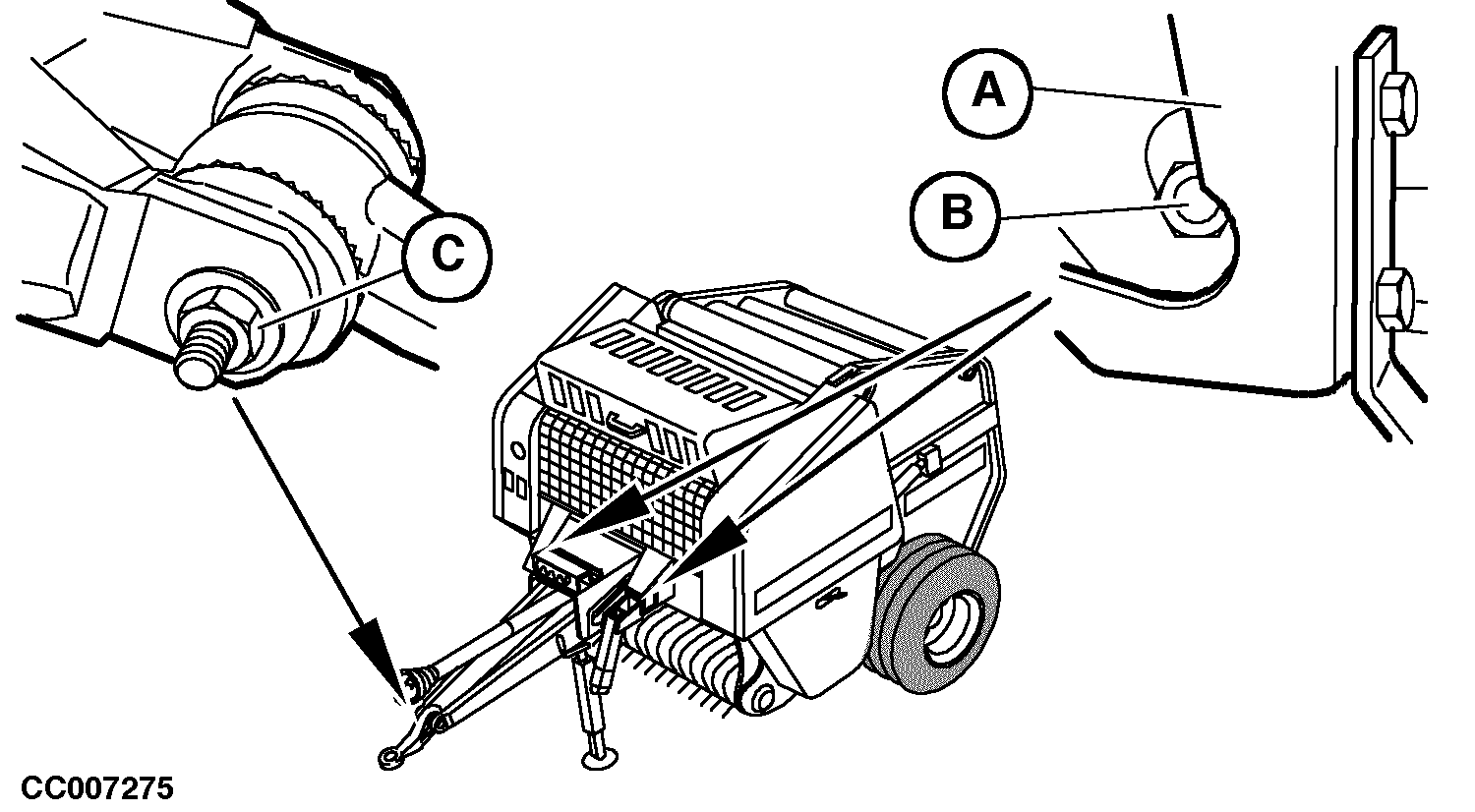

Retighten nuts (A) of tongue frame attaching screws to 700 N·m (516 lb-ft) and lock nuts (B) to 300 N·m (221 lb-ft).

Retighten hitch plate attaching screw (C) to 620 N·m (450 lb-ft).

NOTE: Shielding removed for illustration purposes.

CC03745,00002A7 -19-27AUG01-1/1
