Weekly - Checking and Draining Air Brake Tank

causym CAUTION: Before draining condensed water from the compressed air tank, make sure that the machine is secured against rolling away. Apply the parking brake and place wheel chocks under the wheels.

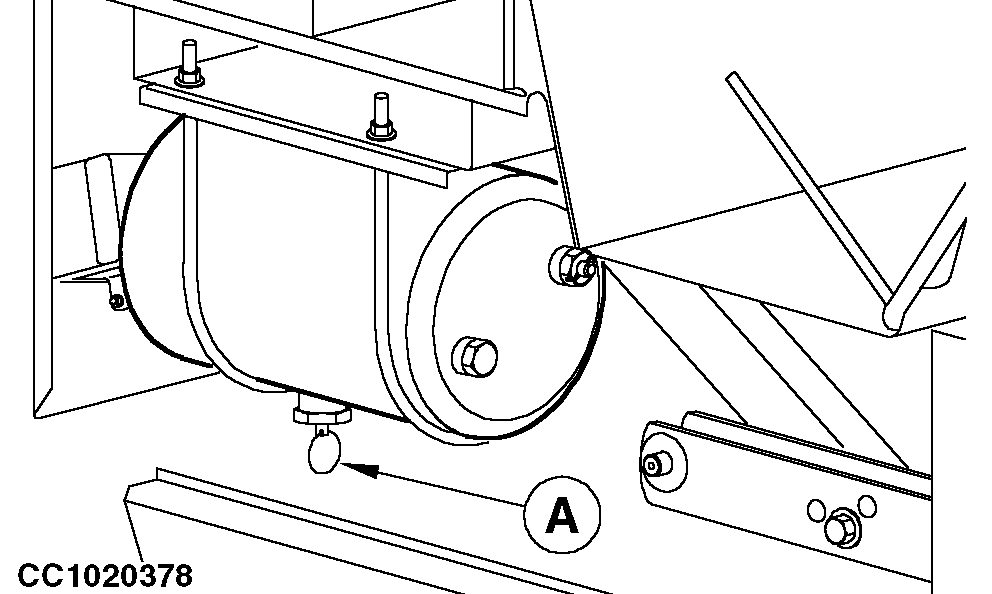

Pull ring (A) to drain water from the air tank.

Condensation in braking system may cause malfunctions.


A-Ring

CC1020378

CC03745,00002B3 -19-27AUG01-1/1
