Description of ELC Plus Monitor with Net/Twine Tying Switch on Wiring Harness

ELC Plus monitor allows to control twine or net tying.

Switch (J) allows to select the tying device.

NOTE: Switch (J) is located on the monitor wiring harness near the monitor.

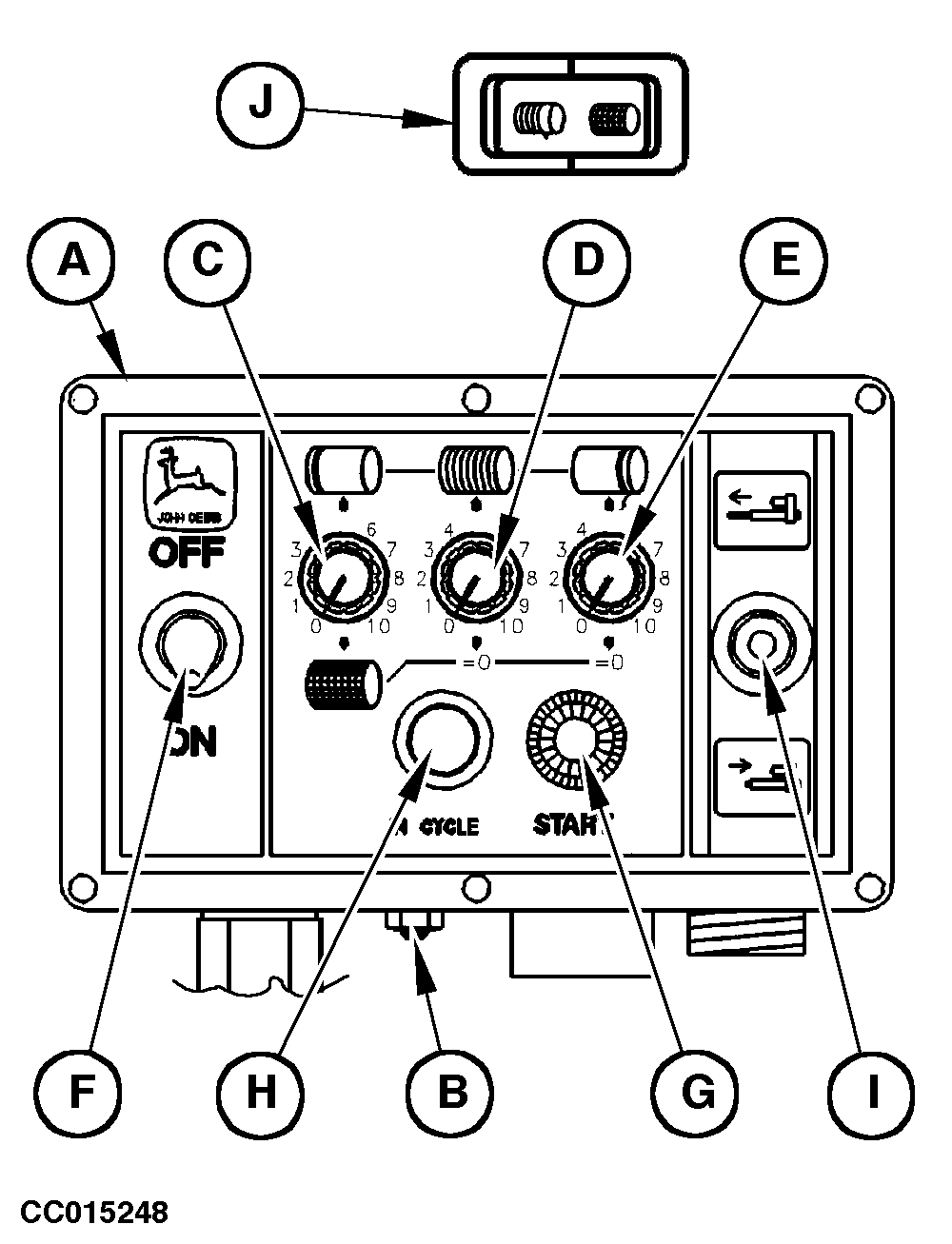

A-Monitor
B-Adjusting screw
C-End bale distribution potentiometer; Net tie density potentiometer
D-Middle twine distribution potentiometer
E-Re-extension time potentiometer
F-"ON/OFF" switch
G-"START" button
H-"IN CYCLE" light
I-Manual control switch
J-Net/Twine tying switch
