Installing Gate Deflectors (up to S.N. 58999)

The gate deflectors (B) must be installed only if bales stick inside the bale chamber.

NOTE: Do not use gate deflectors (B) with slippery crop like straw.

Install gate deflectors (B) as follows :

1. Open gate.

2. Lock gate in "Open" position (see "Gate Lock Valve" in this section).

3. Engage tractor parking brake, place transmission in "Park", shut off tractor engine and remove key.

4. Fasten gate deflectors (B) with bolts (A) on both sides of gate.

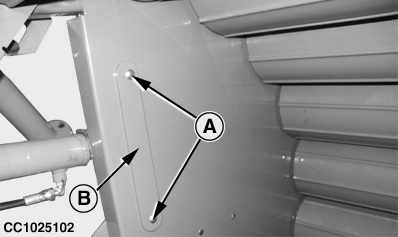

CC1025102


A-Bolts
B-Gate deflector
