Channel 025: Test of Precutter Knives Switches

"CH025" allows to test the knives switches.

The two knives switches are pressed when the knives are engaged and released when the knives are retracted.

Engage precutter knives (see "Retracting/Engaging Precutter Knives" in "Operating BaleTrak Monitor" section).

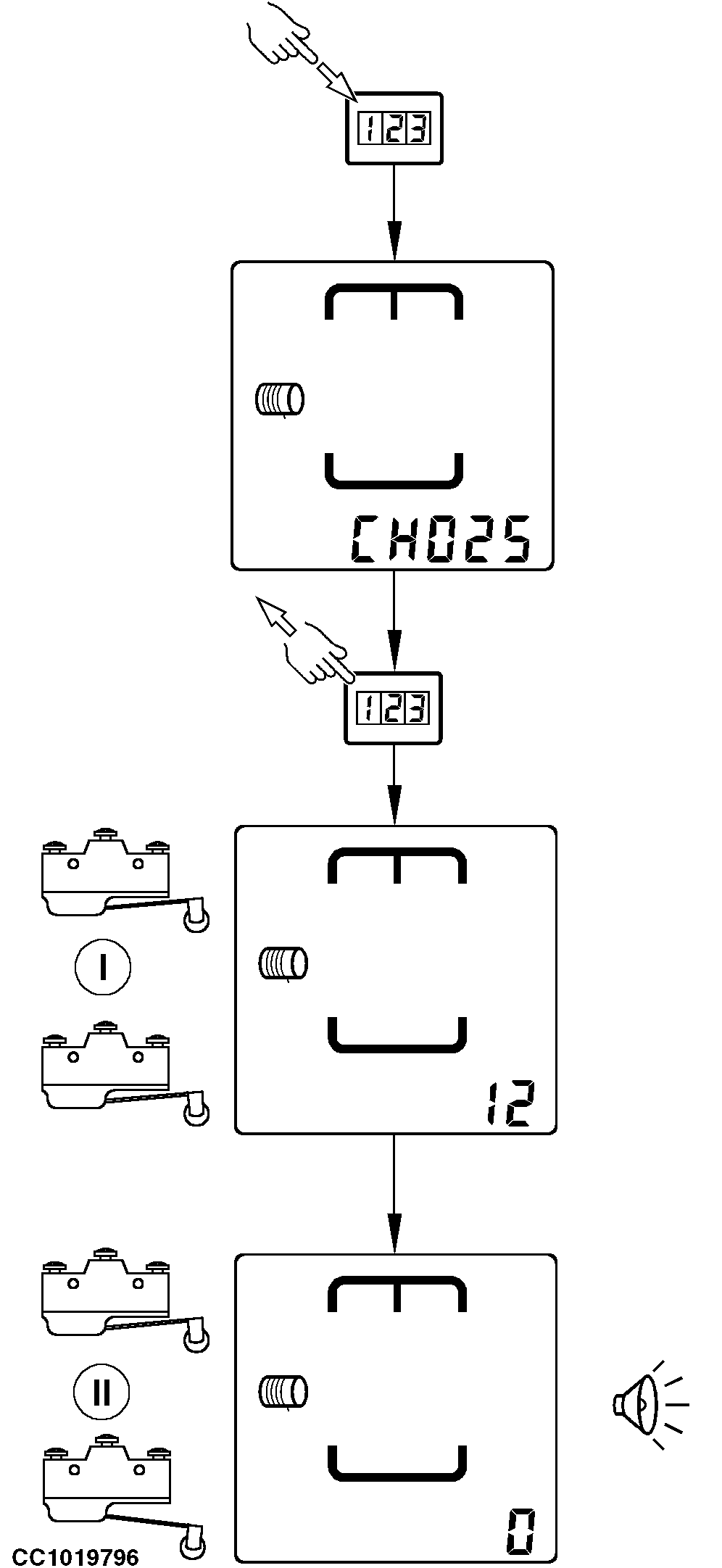

I The monitor displays "12" when both switches are pressed. II Manually release one switch then the other: the monitor displays "0" with a continuous beep when one or two switches are released.

If this test is not OK, see your John Deere dealer.

NOTE: See "Adjusting Precutter knife switches" in "Service" section to check the knives switches adjustment.


I-Both switches pressed
II-One or both switches released

CC1019796

OUCC006,0000469 -19-22AUG01-1/1
