Adjusting Single Arm Twine Cutter Anvil

1. Move twine arm (A) by means of control monitor until it is centered below knife anvil (B).

2. Loosen nuts (C).

3. Adjust twine cutter assembly (D) so clearance between knife anvil (B) and twine arm (A) is 1 to 4 mm (0.04 to 0.16 in.).

4. Retighten nuts (C).

5. Move twine arm to home position.

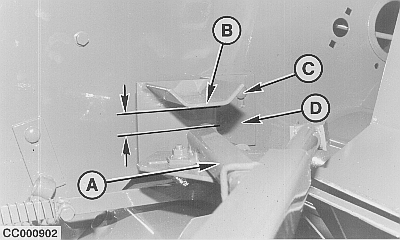

CC000902


A-Twine arm
B-Knife anvil
C-Nuts
D-Cutter assembly

OUCC006,00004A6 -19-06SEP01-1/1
