Replacing Powerline Shear Bolt (If Equipped)

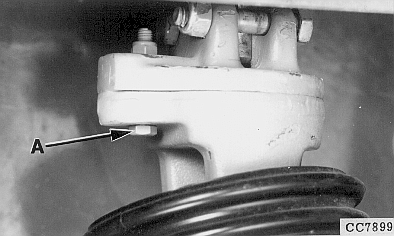

Line up holes in shear bolt hub and install a 8 x 50 mm, grade 8.8 cap screw (A) and lock nut.

IMPORTANT: To avoid overloads on shear bolt, the PTO must be engaged slowly.

Reinstall powerline shield on baler tongue.

A-Cap screw
