Adjusting Twine Guide (Single Arm Tying)

Depending on the crop type, the twine guide (B) allows the operator to adjust the distance of the twine from the right end of the bale from 80 to 150 mm (3.15 to 5.90 in.).

On balers with ELC monitor, check that the twine guide position matches the re-extension point setting. See "Operating ELC Monitor in Twine Tying Mode" in "Operating ELC Monitor" Section.

On balers with BaleTrak control monitor, check that the twine guide position matches the monitor setting. See "Setting Twine Tying" in "Operating BaleTrak Control" Section.

Adjust twine guide as follows:

2. Slide twine guide (B) to align its hole with one of the twine guide tube (C) positioning holes (1-2-3).

3. Install spring locking pin (A).

NOTE: When using the baler for dry, slick crops such as straw, align hole in twine guide (B) with inside hole (3) of twine guide tube (C).

When using the baler in normal operating conditions, align hole in twine guide (B) with outside hole (1) of twine guide tube (C).

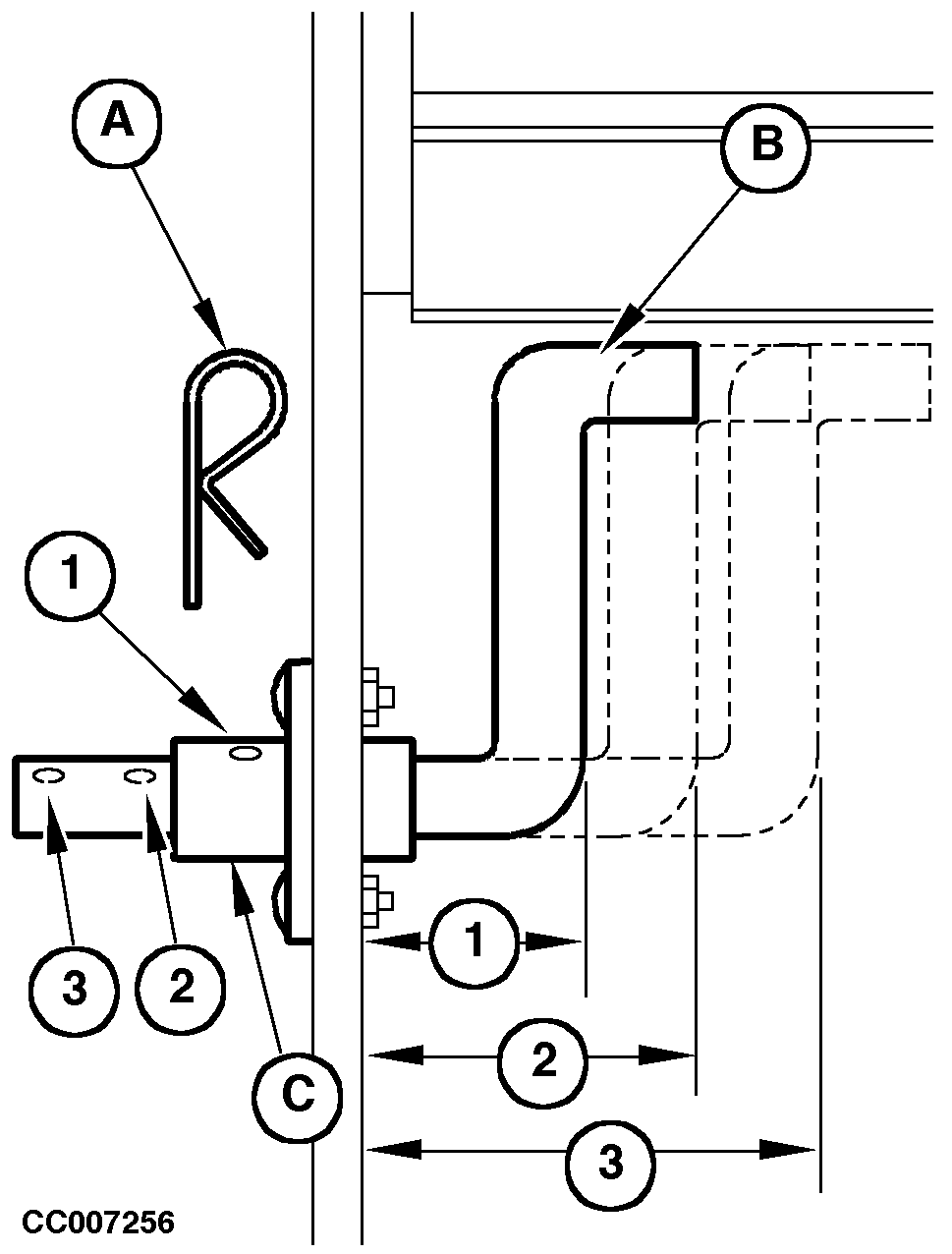

A-Spring-locking pin
B-Twine guide
C-Twine guide tube
1-80 mm (3.15 in.)
2-115 mm (4.52 in.)
3-150 mm (5.90 in.)

OUCC006,0000716 -19-10JUL02-1/1
