OMCC58644: 568 and 578 Round Balers, Block File: OUCC006_0000717_19

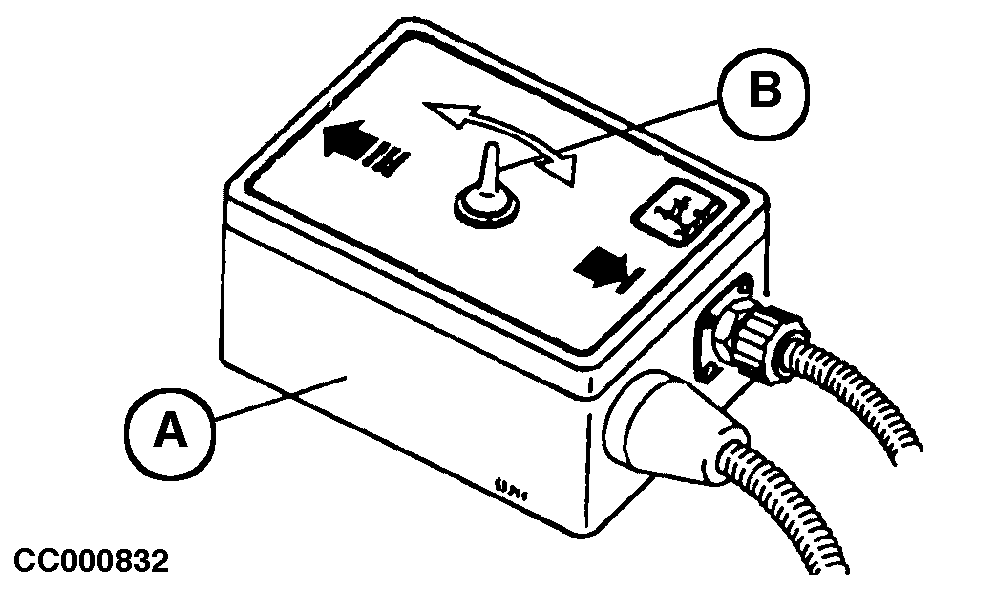

The ELS monitor (A) allows the operator to manually control the twine tying by using the switch (B) to distribute the twine across the bale.

Once connected to the baler wiring harness, the ELS monitor (A) is ready to operate.

NOTE: The ELS monitor includes an electronic limit switch which allows a full twine arm actuator protection from any improper use.

A-ELS monitor
B-Switch

OUCC006,0000717 -19-10JUL02-1/1
