Adjusting Roll (NR 13) Scraper

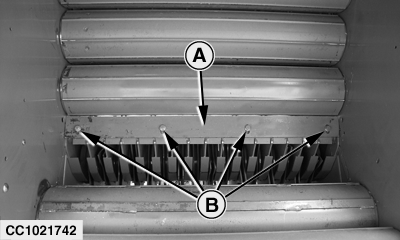

Adjust scraper (A) as follows:

Loosen fixing screws (B) of scraper (A).

Slide scraper (A). Position scraper (A) as close as possible to the roll (NR 13) without contact.

Tighten fixing screws (B).

A-Scraper
B-Fixing screws

OUCC006,0000732 -19-29JUL02-1/1
