Connecting Baler Wiring Harness to ELC Monitor

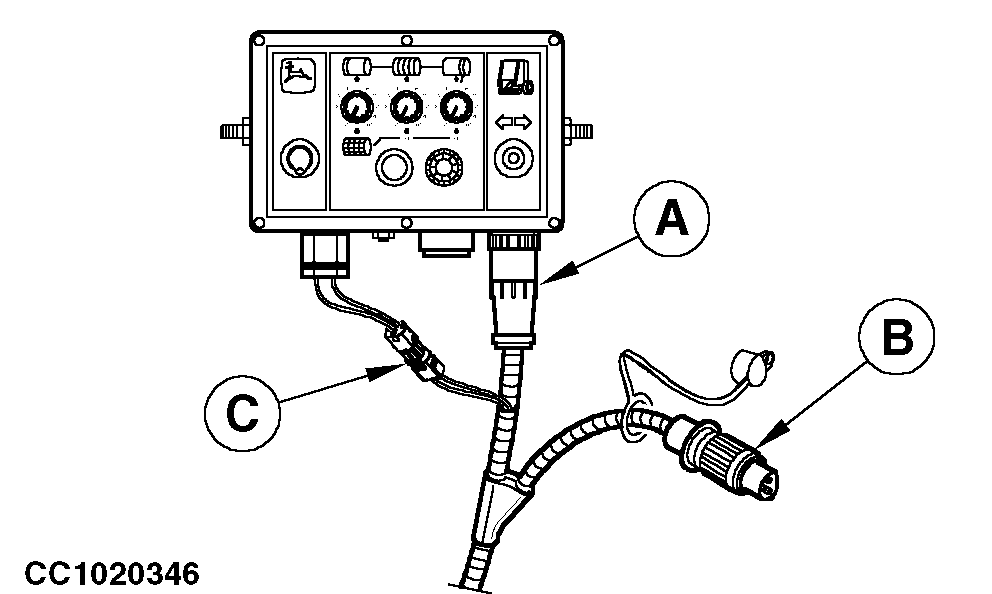

Line up timing marks on connector (A) and monitor. Tighten locking ring.

Connect connector (C).

Connect power supply plug (B) to the convenience outlet on the tractor.

IMPORTANT: Always connect baler wiring harness to special convenience outlet.

A-Connector
B-Power Supply Plug
C-Connector

OUCC006,000073A -19-01AUG02-1/1
