Selecting Tying Program

The BaleTrak monitor includes five automatic tying programs depending on crop conditions:

  • Program 1 is for unchopped silage.
  • Program 2 is for straw.
  • Program 3 is for hay.
  • Program 4 is for chopped silage.
  • Program 5 called "Eco" allows to reduce tying cost.

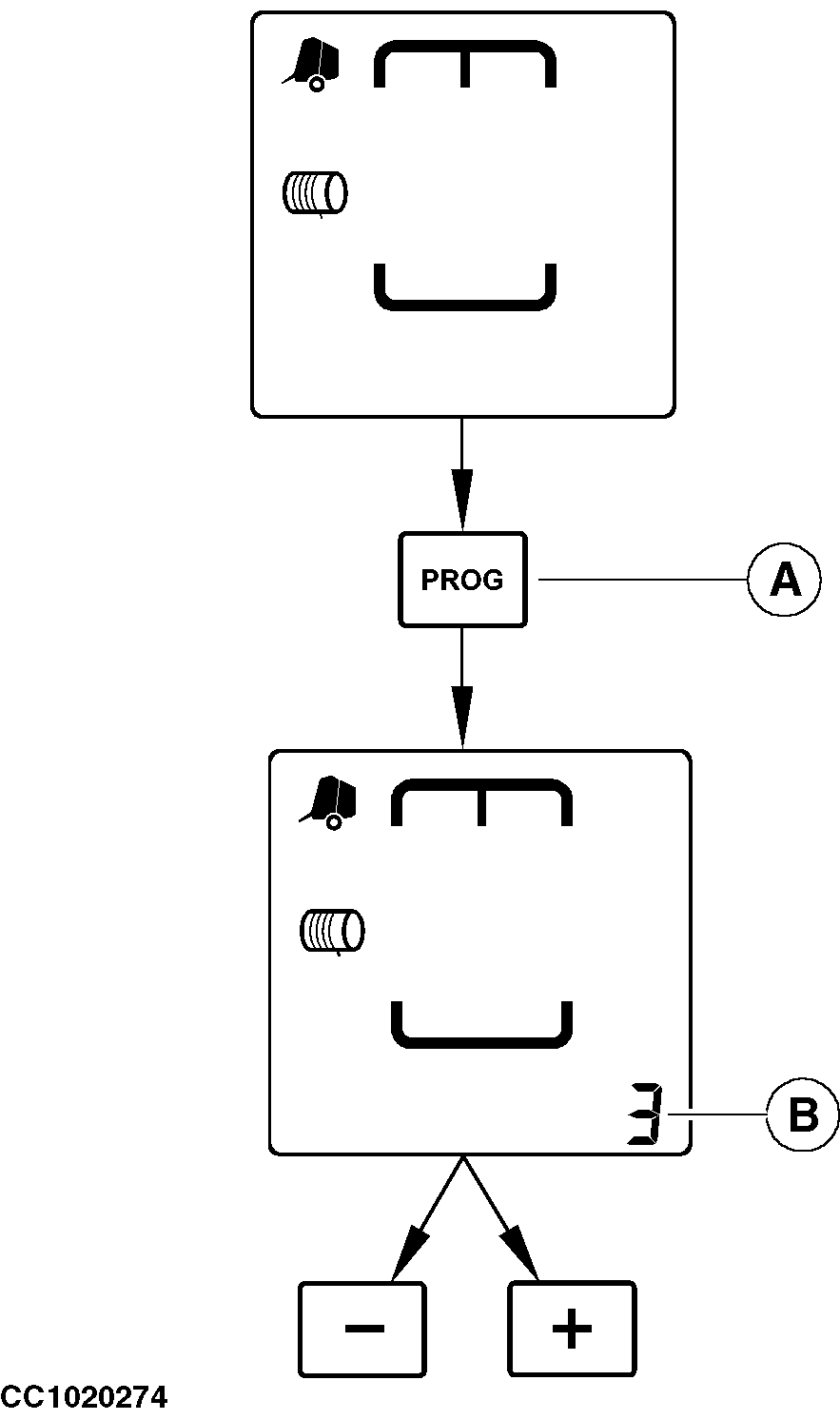

Press "PROGRAM" key (A). The number of the last program selected (B) is displayed for five seconds.

While the program number is displayed, press "PLUS" or "MINUS" key to select the desired program from 1 to 5.

The last program displayed is stored after five seconds.

Tying Programs

The following tables show the factory settings of each tying program.

CC1020274


A-Program key
B-Program selected

Net Tying Programs
  Program 1 (Silage) Program 2 (Straw) Program 3 (Hay) Program 4 (Chopped silage) Program 5 ("Eco")
Net Density
Number of Turns		 2 3 2.5 3 2



OUCC006,0000742 -19-01AUG02-1/2

Twine Tying Programs
  Program 1 (Silage) Program 2 (Straw) Program 3 (Hay) Program 4 (Chopped silage) Program 5 ("Eco")
Number of Twine Turns on Right-Hand Side 4 turns 3 turns 2 turns 3 turns 2 turns
Number of Twine Turns on Left-Hand Side 4 turns 3 turns 2 turns 3 turns 2 turns
Twine Spacing 5 cm (2 in.) 10 cm (4 in.) 5 cm (2 in.) 2 cm (0.8 in.) 15 cm (6 in.)
Distance of Tying Ends 8 cm (3 in.) 10 cm (4 in.) 8 cm (3 in.) 8 cm (3 in.) 8 cm (3 in.)



Each program can be customized depending on the crop condition. See "Setting Twine Tying" in this section.

Modifications made in program 5 are permanently saved in the monitor memory.

Modifications made in programs 1, 2, 3 or 4 are stored as long as the program is selected.

Switching the monitor on and off will not affect customized setting in the selected program.

When switching from program "X" to another program, the customized setting in program "X" is lost and the program "X" will return to factory parameters.

To reset all programs to factory parameters, see "Channel 001: Reset to Factory Default Settings" in "BaleTrak Monitor Service" section.

IMPORTANT: Three other specific twine tying programs are available in diagnostic mode:

  • Dry straw twine tying program. Channel 002.

  • Re-extension twine tying program. Channel 003.

  • Cinch Tying. Channel 004.

See "BaleTrak Monitor Service" section.

OUCC006,0000742 -19-01AUG02-2/2
