Channel 002: Dry Straw Twine Tying Program

When baling dry straw, it may be desirable to quickly place twine across full width of bale to prevent straw from flaking off in the baler.

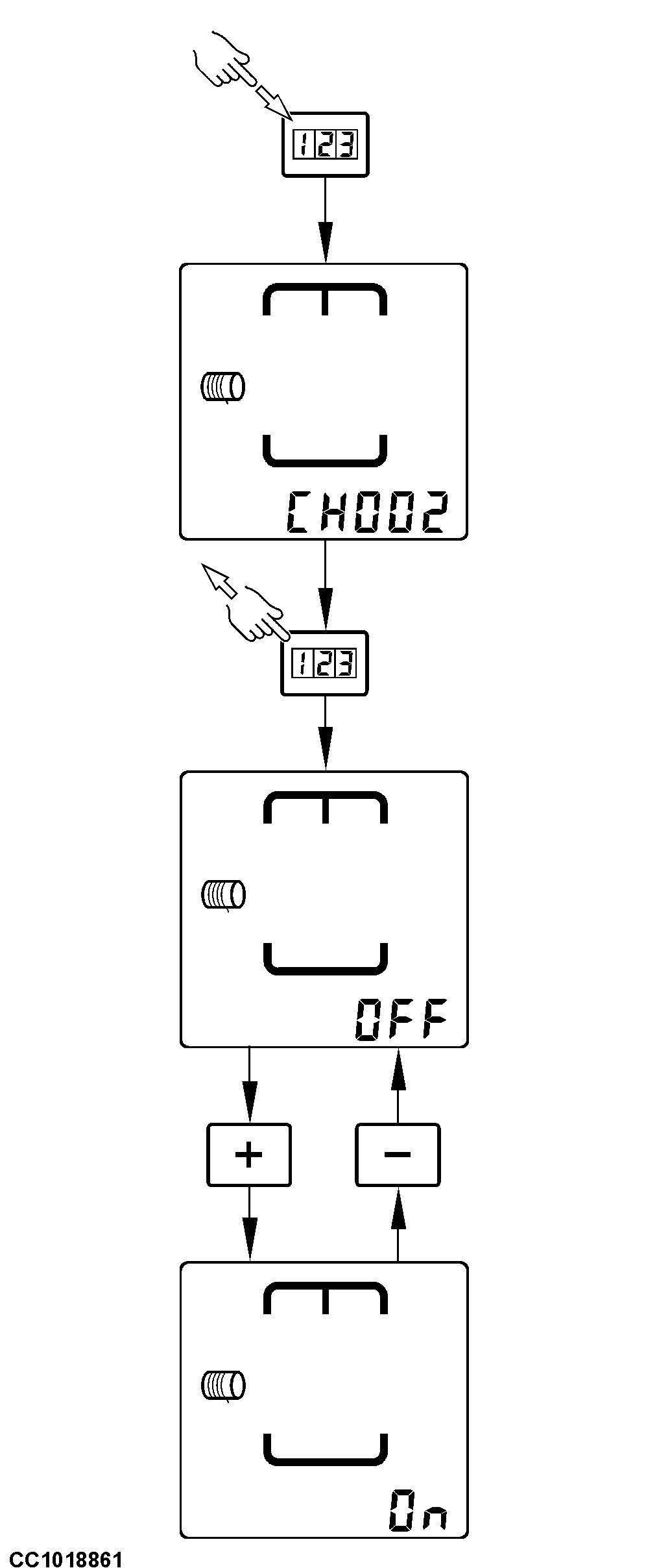

In "CH002", press "PLUS" key to activate the program. The LCD screen displays "ON".

Press "MINUS" key to switch off the program. The LCD screen displays "OFF".

With Double Twine Arm

The dry straw twine program provides full speed twine arm movement from center to edge, then from edge to center. Then, the twine arm comes backs to the edge, pauses to place the set number at tying start, and continues to apply twines as set in the monitor.

With Single Twine Arm

The dry straw twine program provides full speed twine arm movement from right to left, then from left to right. Then, the twine arm comes backs to the left, pauses to place the set number at tying start, and continues to apply twines as set in the monitor.

OUCC006,0000750 -19-02AUG02-1/1
