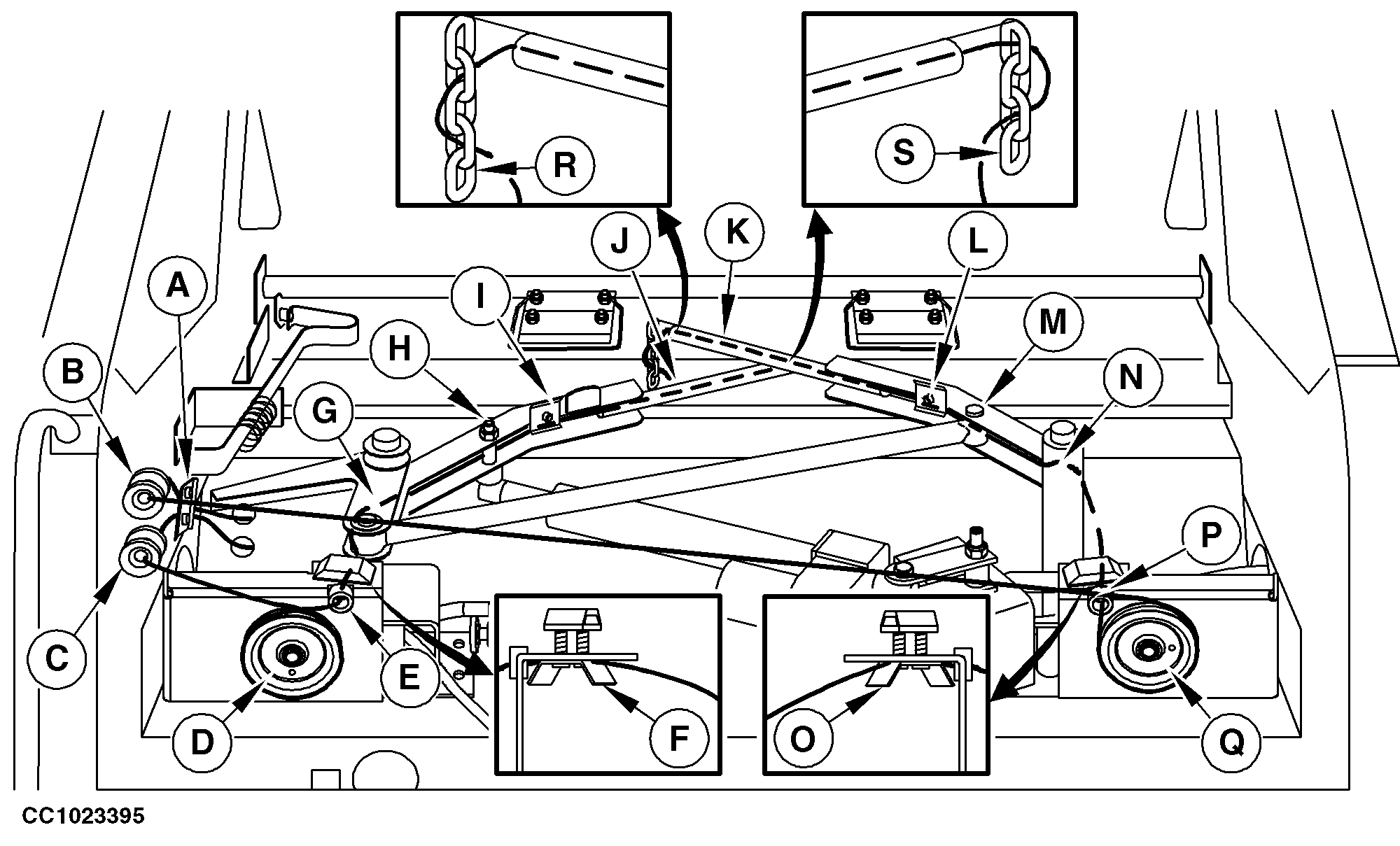

A-Twine tension plate
B-Twine guide
C-Twine guide
D-Pulley
E-Twine guide

F-Twine tension plate
G-Twine guide
H-Bolt
I-Tension plate
J-Twine arm tube

K-Twine arm tube
L-Tension plate
M-Pin
N-Twine guide
O-Tension plate

P-Twine guide
Q-Pulley
R-Chain
S-Chain

CAUTION: Keep clear of the machine while operating twine arm actuator.

1. Slightly extend twine arms.

2. Switch off monitor.

3. Route both twines behind twine tension plate (A).

4. Routing right-hand twine:

a. Route one twine through twine guide (C).

b. Loop it around pulley (D).

c. Thread it through twine guide (E) and above twine tension plate (F).

d. Thread it through twine guide (G) in right twine arm.

e. Pull it behind bolt (H).

f. Place it behind tension plate (I).

g. Thread it through twine arm tube (J), there must be 300 mm (12 in.) of twine exposed from end of twine arm.

h. Thread it through first link and through second last link of chain (S) as shown.

OUCC006,00009F7 -19-18SEP03-1/2

A-Twine tension plate
B-Twine guide
C-Twine guide
D-Pulley
E-Twine guide

F-Twine tension plate
G-Twine guide
H-Bolt
I-Tension plate
J-Twine arm tube

K-Twine arm tube
L-Tension plate
M-Pin
N-Twine guide
O-Tension plate

P-Twine guide
Q-Pulley
R-Chain
S-Chain

a. Route one twine through twine guide (B).

b. Loop it around pulley (Q).

c. Thread it through twine guide (P) and above twine tension plate (O).

d. Thread it through twine guide (N) in left twine arm.

e. Pull it behind pin (M).

f. Place it behind tension plate (L).

g. Thread it through twine arm tube (K), there must be 300 mm (12 in.) of twine exposed from end of twine arm.

h. Thread it through second link and through second last link of chain (R) as shown.

6. Close trash screen.

7. Retract twine arms.

OUCC006,00009F7 -19-18SEP03-2/2
