Adjusting Pulley Supports (Double Arm Twine Tying)

1. Loosen nuts (B).

2. Slide pulley support (C) to obtain a clearance (A) of 5 ± 1 mm (0.2 ± 0.04 in.).

3. Tighten nuts (B).

4. Repeat adjustment on the other pulley support.


A-Clearance
B-Nuts
C-Pulley support

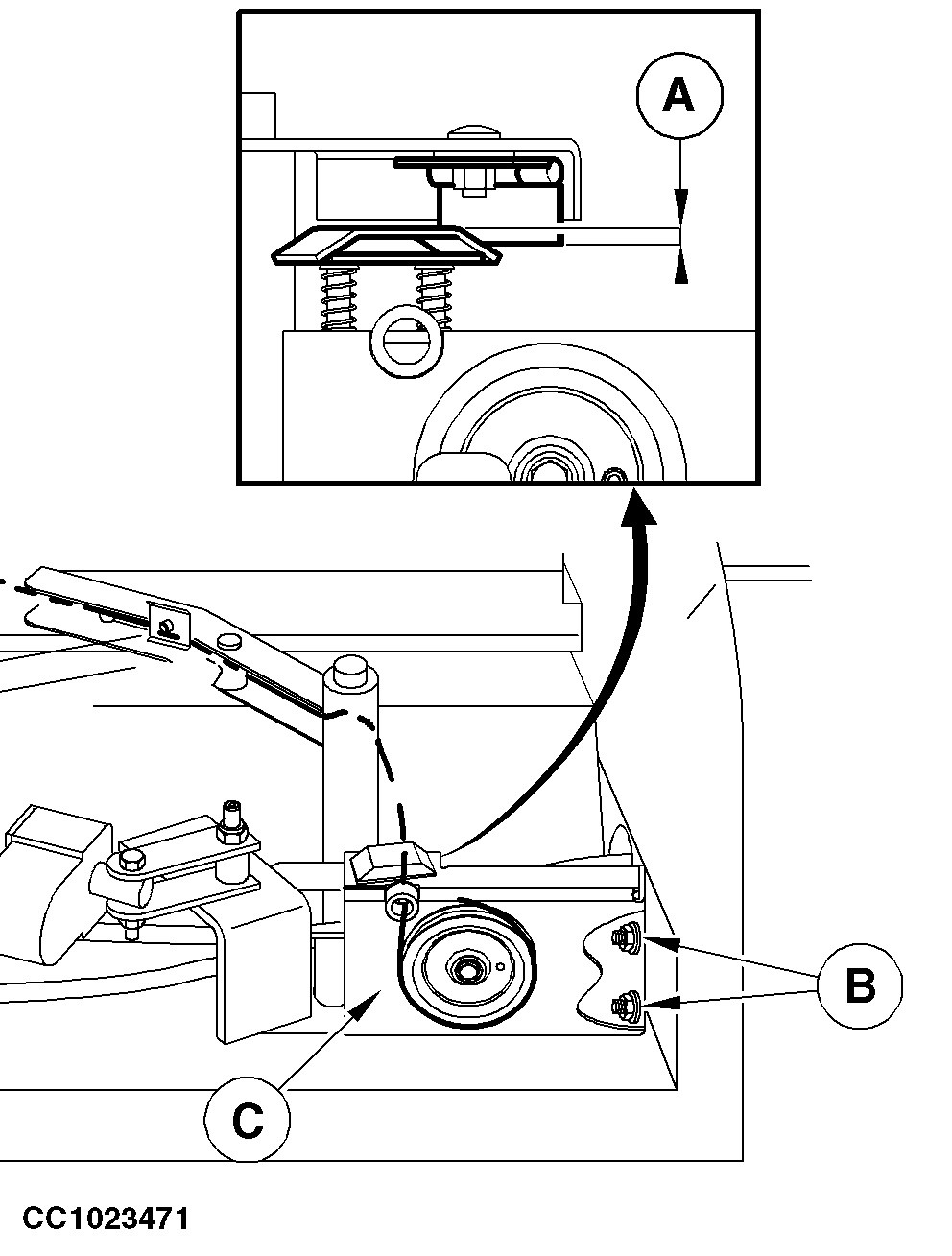

CC1023471
