Tire Inflation

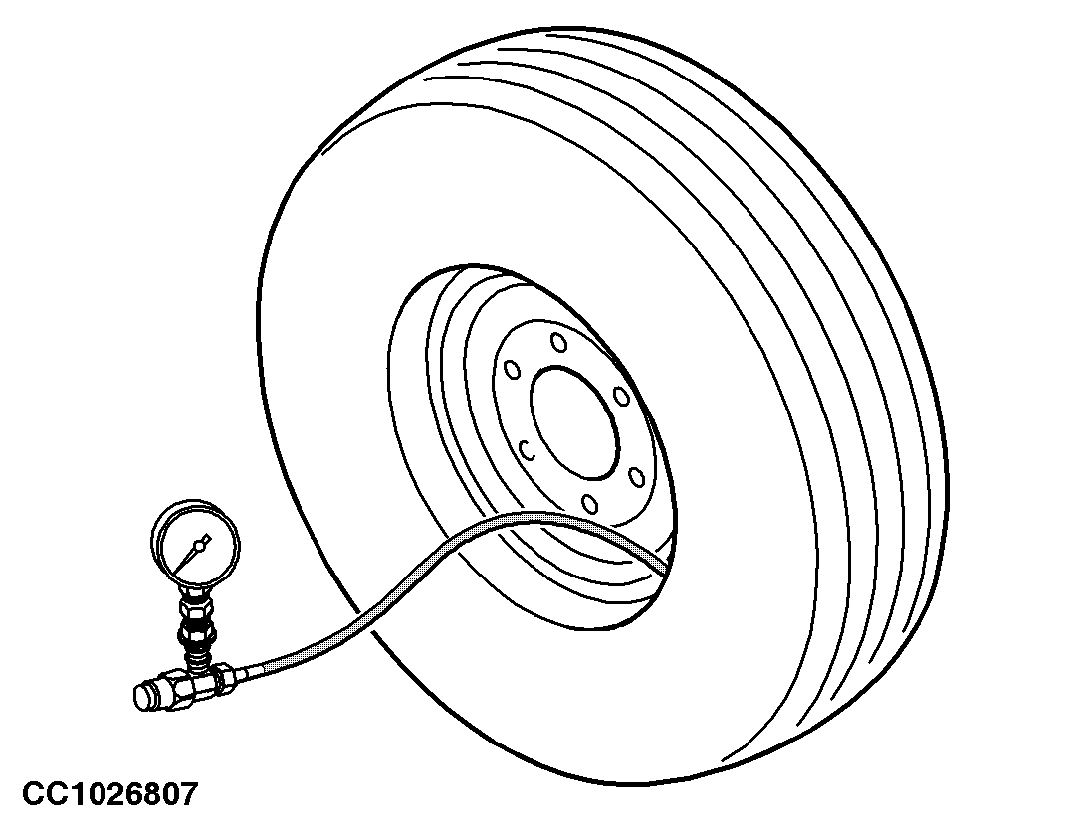

CC1026807

  Pressure
Tire type With maximum transport speed of 30 km/h (19 mph) With maximum transport speed of 40 km/h (24 mph)
11.5/80 x 15.3 (10 PR) 200 kPa (2 bar; 29 psi)  a
15/55 - 17 (10 PR) 150 kPa (1.5 bar; 22 psi)  a
19/45 - 17 (10 PR)
500/50 - 17 (10 PR)		 150 kPa (1.5 bar; 22 psi) 150 kPa (1.5 bar; 22 psi)
aNot homologated



  Pressure
Pickup Gauge Wheel 140 kPa (1.4 bar; 20 psi)



The maximum transport speed for this implement is :

  • 25 km/h (15 mph) for implement without brakes or with hydraulic brakes
  • 40 km/h (25 mph) for implement with pneumatic brakes

Maximum transport speed is determined by local road traffic regulations; always observe local traffic regulations when using public roads.

OUCC006,0000BBB -19-26OCT06-1/1
