Removing and Installing Net Feed Roll Drive Belt (Baler with Standard Net Tying Device)

2. Retract net actuator (A) to release belt tension.

3. Remove belt (B) from sheaves.

4. Install a new belt as shown.

5. Adjust belt tension. See "Adjusting Net Feed Roll Drive Belt Tension" in this section.

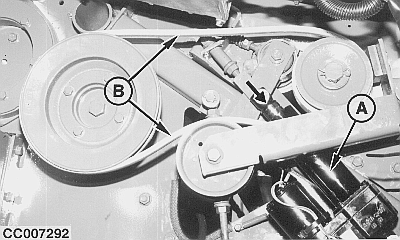

A-Actuator
B-Belt

OUCC006,0000BBF -19-31OCT06-1/1
