Adjusting Net Feed Roll Pressure (Baler with Standard Net Tying Device)

IMPORTANT: Adjustment must be done without belt. See "Removing and Installing Net Feed Roll Drive Belt" in this section.

1. Open side doors.

2. Extend the cylinder to middle position.

3. Loosen lock nut (A) and adjust the spring length until specified dimension (B) is obtained by loosening or tightening spring adjusting nut (C).

Specification

Pressure Spring Length -Distance 20 mm (0.78 in.)

NOTE: Make sure that galvanized feed roll is moving freely under the action of the springs.

Too much pressure can cause net to unroll. A lack of pressure will prevent net from being transported to the bale.

4. Repeat step 3, on the other side.

5. Remove any foreign material or net from between the feed rolls.

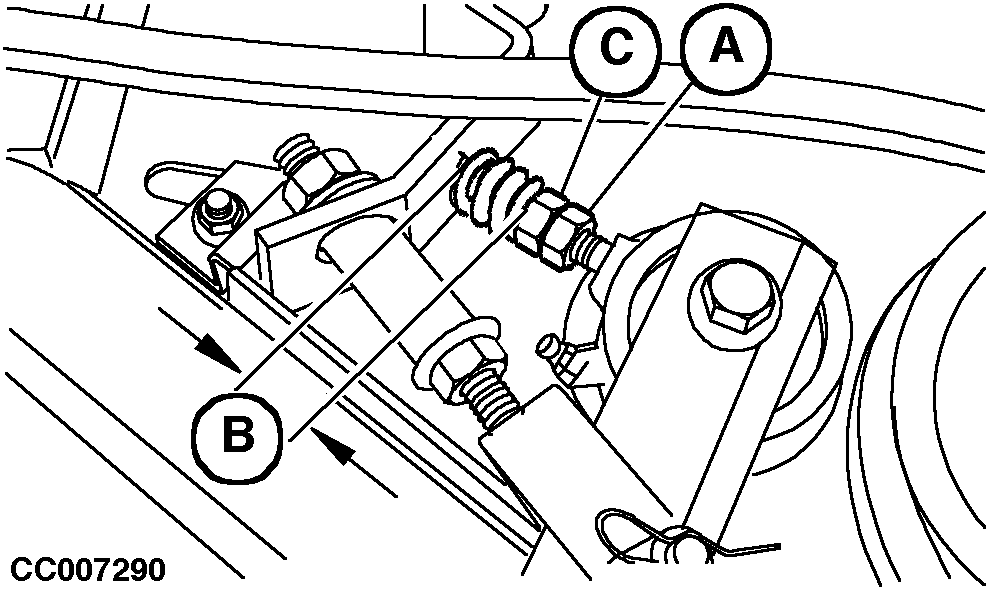

CC007290


A-Lock nut
B-20 mm (0.78 in.)
C-Spring adjusting nut

OUCC006,0000BC0 -19-12JAN07-1/1
