Adjusting Twine Guides (Double Arm Tying)

Adjust the twine guides (B) distance (A) to the following specification:

Specification

Twine Guides -Distance 2 mm (0.08 in.) minimum

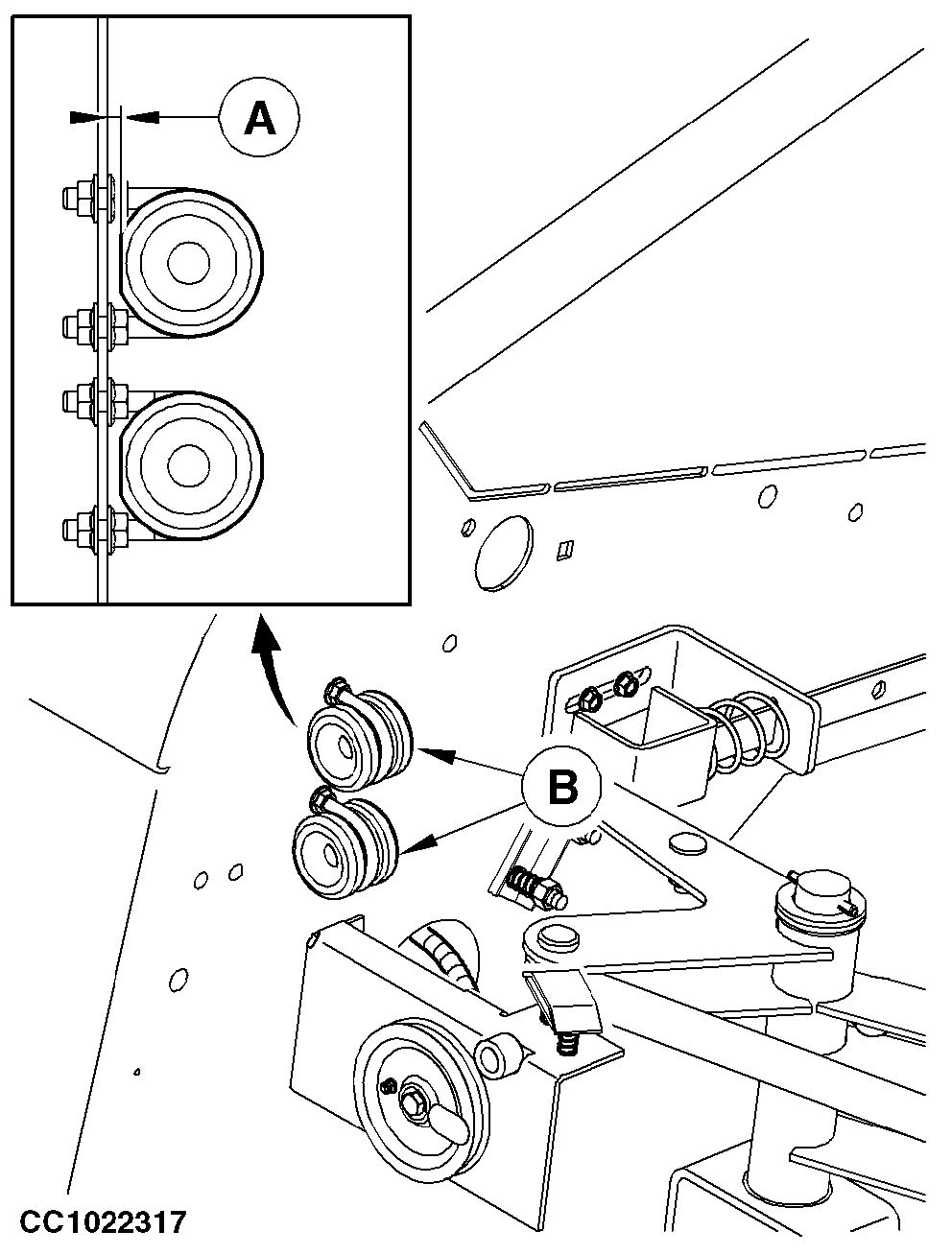

A-Distance
B-Twine guide

CC1022317

OUCC006,0000BC7 -19-02FEB07-1/1
