Every 1000 Bales - Gear Case Oil Level (Baler with Rotary Feeder)

IMPORTANT: Check level of lubricant every 1000 bales and refill as necessary.

Do not overfill gear case as this will result in overheating and oil leakage.

Use a type of oil specified under "Gear Oil" in this section.

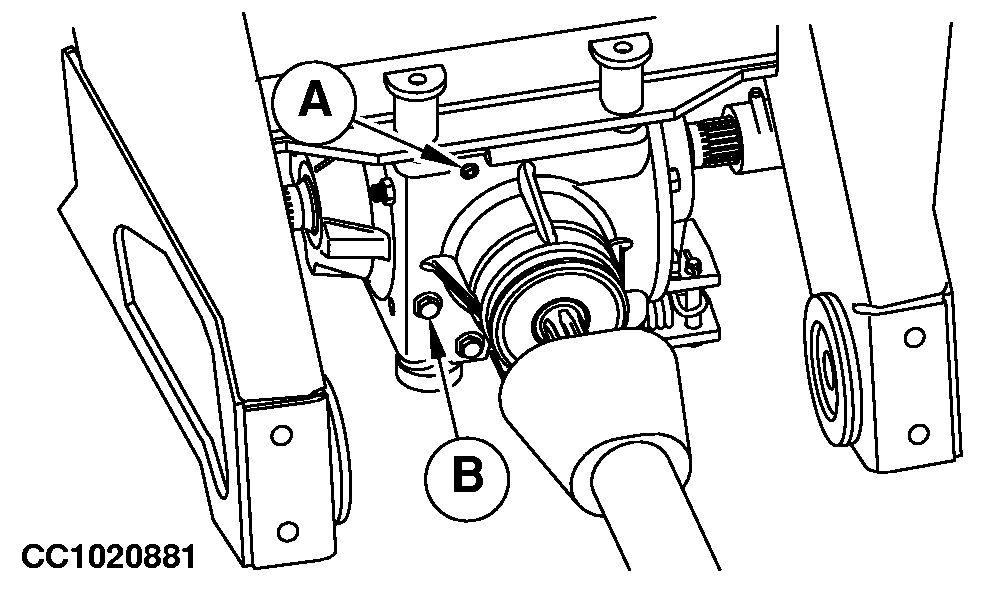

A-Refill plug
B-Level plug

OUCC006,0000BD9 -19-11JAN07-1/1
