Adjusting Precutter Knives Switch

Engage knives. (See Retracting/Engaging Precutter Knives in Operating BaleTrak Monitor section.)

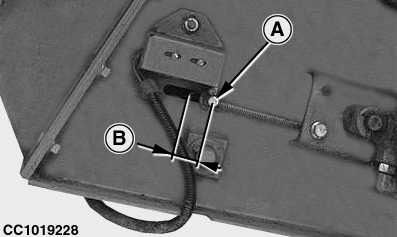

Adjust switch so that a click is heard when the rod (A) is back of 1 cm (0.4 in.) (B) from home position.


A-Rod
B-1 cm (0.4 in.)

CC1019228

OUCC006,0000BE7 -19-17AUG04-1/1
