Installing ELS Monitor on the Tractor

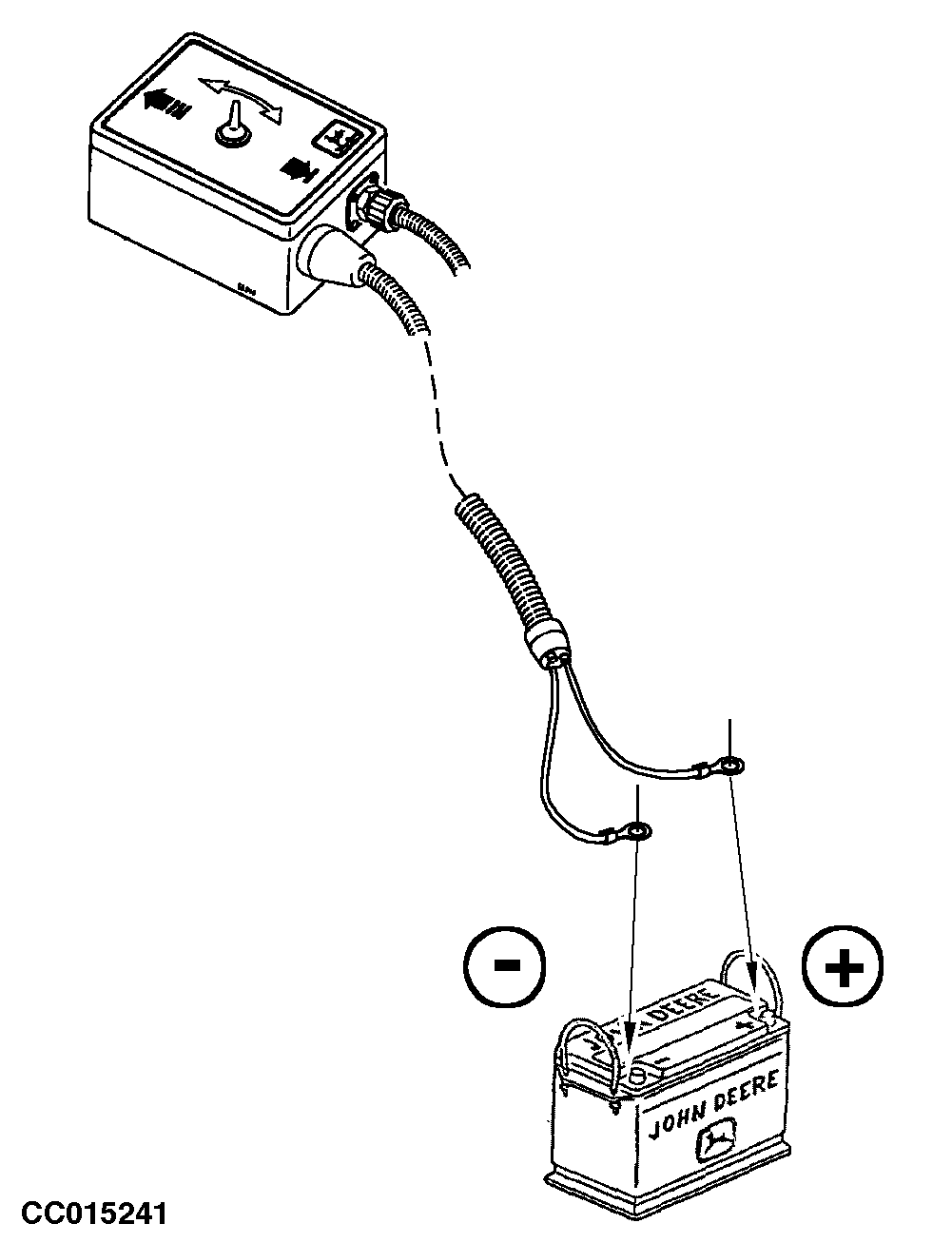

Install ELS monitor box at any convenient place near the operator's seat.

Connect the positive wire (RED) of the ELS monitor to the positive strap of the tractor battery.

Connect the ground wire (BLACK) to the negative strap of the tractor battery.

The power supply must be 12 Volt, 30 A with fully charged battery. A minimum of 20 A is required during electrical cylinder retract cycle.

IMPORTANT: Over voltage should not be higher than 19 V.

Do not connect the ELS monitor to the starter motor solenoid.

Always check battery voltage and connections by actuating the actuators before operating the baler.

ELS monitor is reverse voltage protected.

OUCC006,0000F27 -19-22JUL05-1/1
