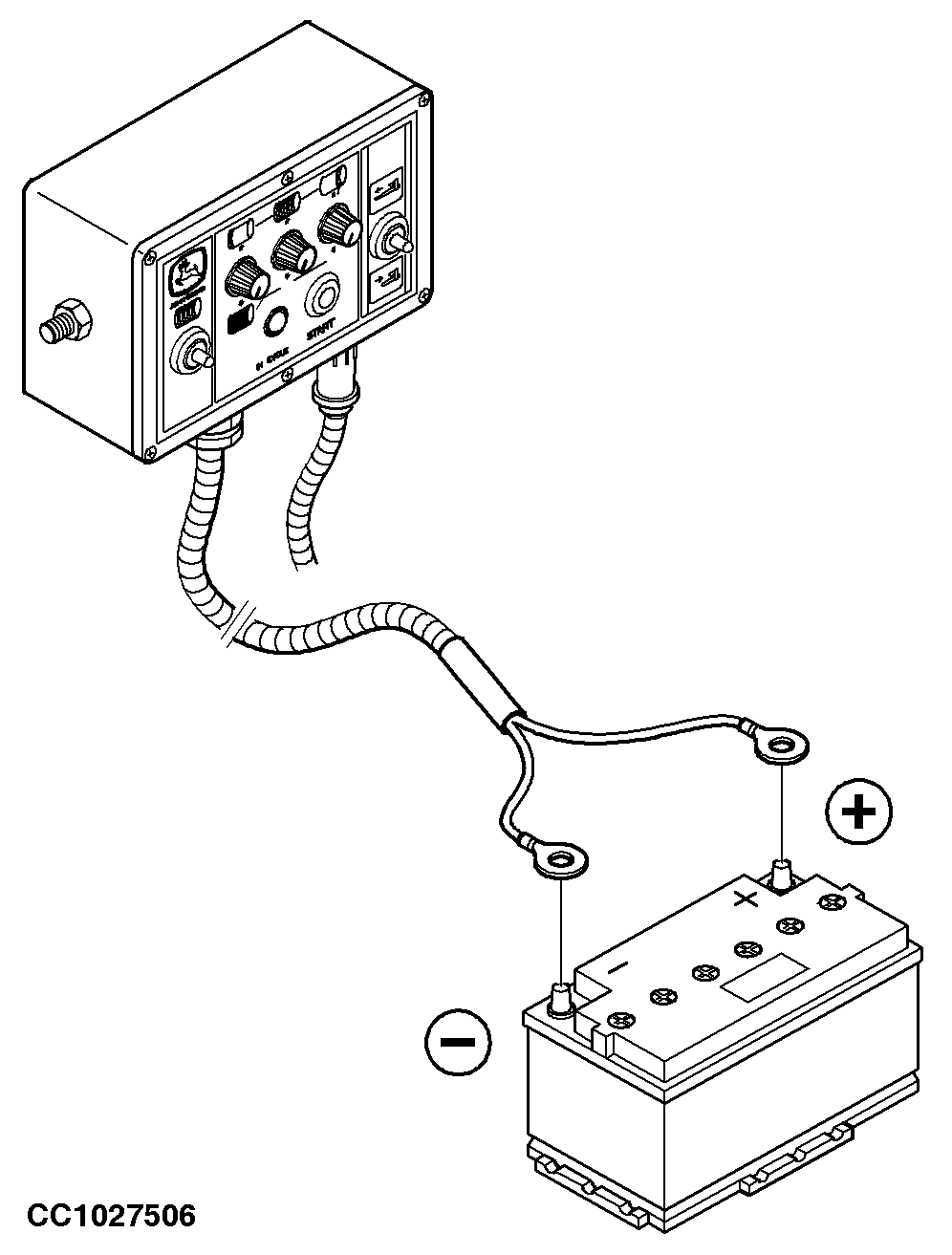

Installing ELC Monitor on the Tractor

Install ELC monitor on the provided support.

Connect the positive wire (RED) of the ELC monitor to the positive strap of the tractor battery.

Connect the ground wire (BLACK) to the negative strap of the tractor battery.

The power supply must be 12 Volt, 30 A with fully charged battery. A minimum of 20 A is required during electrical cylinder retract cycle.

IMPORTANT: Over voltage should not be higher than 19 V.

Under voltage should not be below 9 V as under this value circuit breaker will trip. This can occur when battery is flat or if battery connections are not good. Always check battery voltage and connections by actuating the actuators before operating the baler.

NOTE: Due to the high level of ripple current (over voltage), do not perform any ELC monitor test with the battery connected to a battery charger.

ELC monitor is reverse voltage protected.

OUCC006,0000F28 -19-22JUL05-1/1
