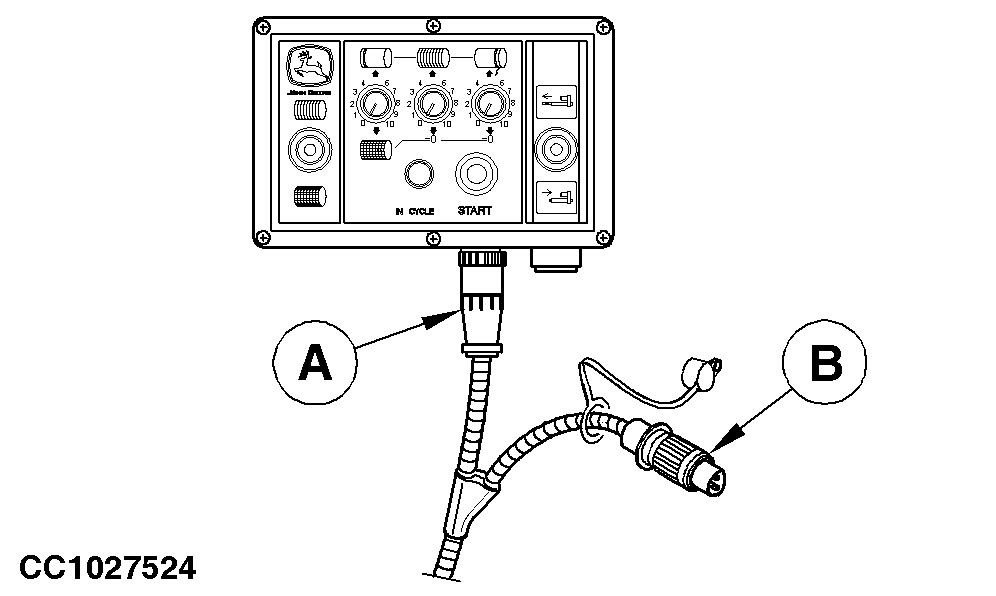

Connecting Baler Wiring Harness to ELC Plus Monitor

Line up timing marks on connector (A) and monitor. Tighten locking ring.

Connect power supply plug (B) to the convenience outlet on the tractor.

IMPORTANT: Always connect baler wiring harness to special convenience outlet.

A-Connector
B-Power Supply Plug

OUCC006,00010BB -19-11JAN07-1/1
