Storing Jackstand (up to S.N. 58999 Baler without Brakes)

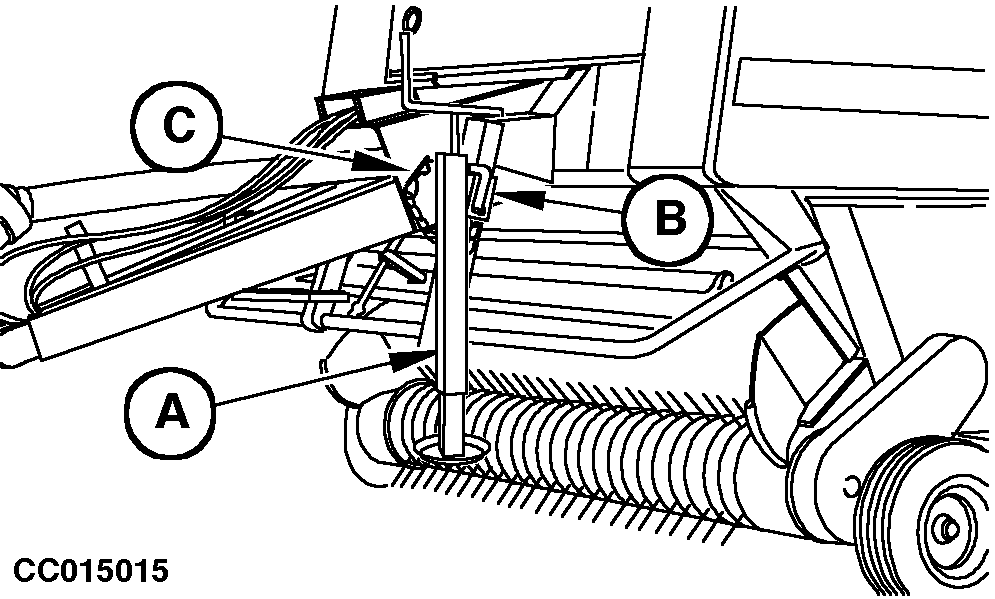

After hitching to tractor, secure jackstand (A) in its storage position as shown.

Secure jackstand with pin (B) and quick-lock pin (C).

A-Jackstand
B-Pin
C-Quick-lock pin

OUCC006,00010C1 -19-15DEC06-1/1
