Using Jackstand (up to S.N. 58999 Baler without Brakes)

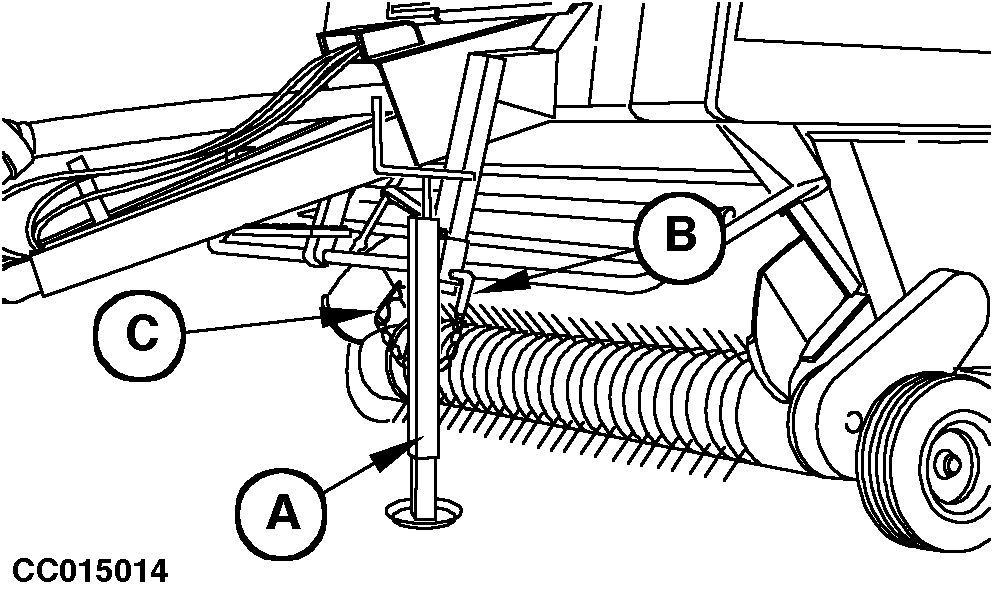

Before detaching baler from tractor, remove jackstand (A) from storage position and place it in position as shown.

Secure jackstand (A) with pin (B) and quick-lock pin (C).

A-Jackstand
B-Pin
C-Quick-lock pin

OUCC006,00010C3 -19-15DEC06-1/1
