Using Jackstand (up to S.N. 58999 Baler with Brakes)

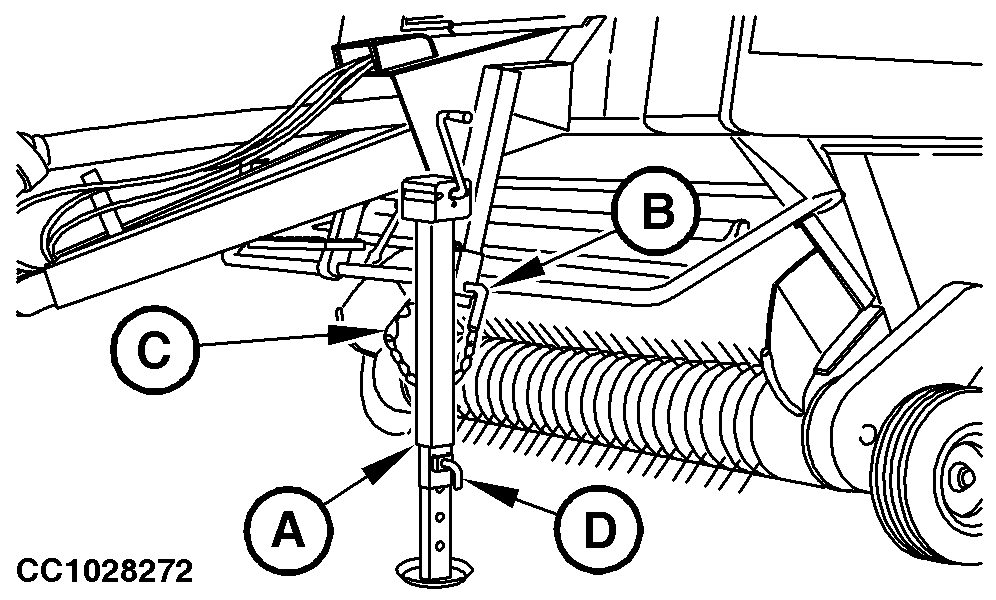

Before detaching baler from tractor, remove jackstand (A) from storage position and place it in position as shown.

Secure jackstand (A) with pins (B) and (D) and quick-lock pin (C).

A-Jackstand
B-Pin
C-Quick-lock pin
D-Pin

OUCC006,00010C7 -19-18OCT06-1/1
