Storing Telescoping Hook-Up (up to S.N. 51787)

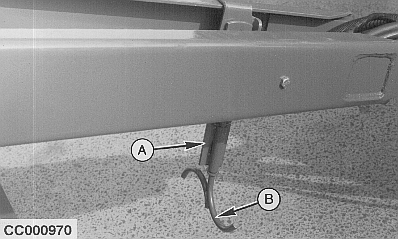

When baler tongue is adjusted for the use of the tractor trailer hitch, pull on support (A) and lower it as shown. Rotate hook (B) so that hook-up can be stored on it.

A-Support
B-Hook

OUCC006,00010C8 -19-16JUN06-1/2

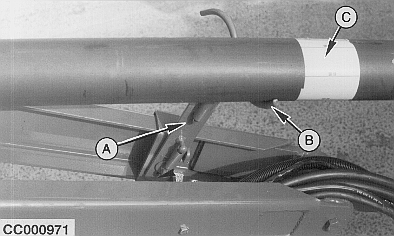

When baler tongue is adjusted for the use of the tractor drawbar, pull on support (A) and raise it as shown. Rotate hook (B) so that hook-up (C) can be stored on it.

A-Support
B-Hook
C-Hook-up

OUCC006,00010C8 -19-16JUN06-2/2
