Storing Telescoping Hook-Up (from S.N. 51788)

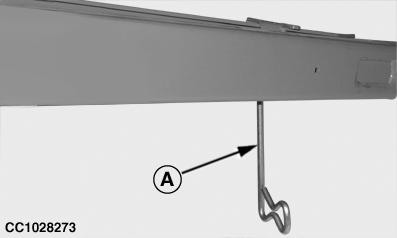

When baler tongue is adjusted for the use of the tractor trailer hitch, position support (A) as shown so that hook-up can be stored on it.


A-Support

CC1028273

OUCC006,00010C9 -19-06JUL06-1/2

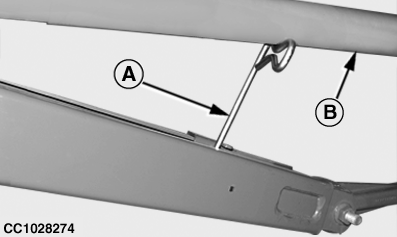

When baler tongue is adjusted for the use of the tractor drawbar, position support (A) as shown so that hook-up (B) can be stored on it.


A-Support
B-Hook-up

CC1028274

OUCC006,00010C9 -19-06JUL06-2/2
