Adjusting Rotary Feeder Pickup Auger Scrapers

1. Position scraper (A) as close as possible to auger (B) avoiding contact.

2. Adjust this clearance using adjusting screws (C).

3. Tighten screws (C).

4. Repeat this process on the other side of the auger.


A-Scraper
B-Auger
C-Screws

CC1028448

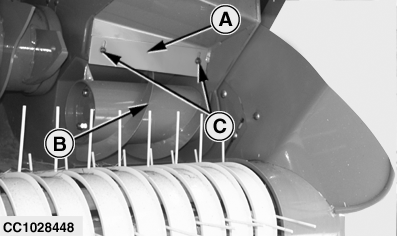

2 m (6 ft 7 in.) rotary feeder pickup shown

CC1028408

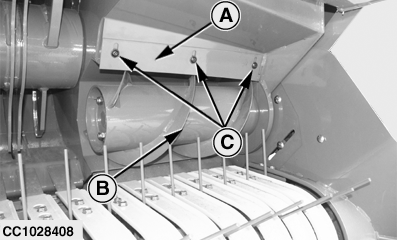

2.20 m (7 ft 2.6 in.) rotary feeder pickup shown

OUCC006,00010CF -19-02FEB07-1/1
