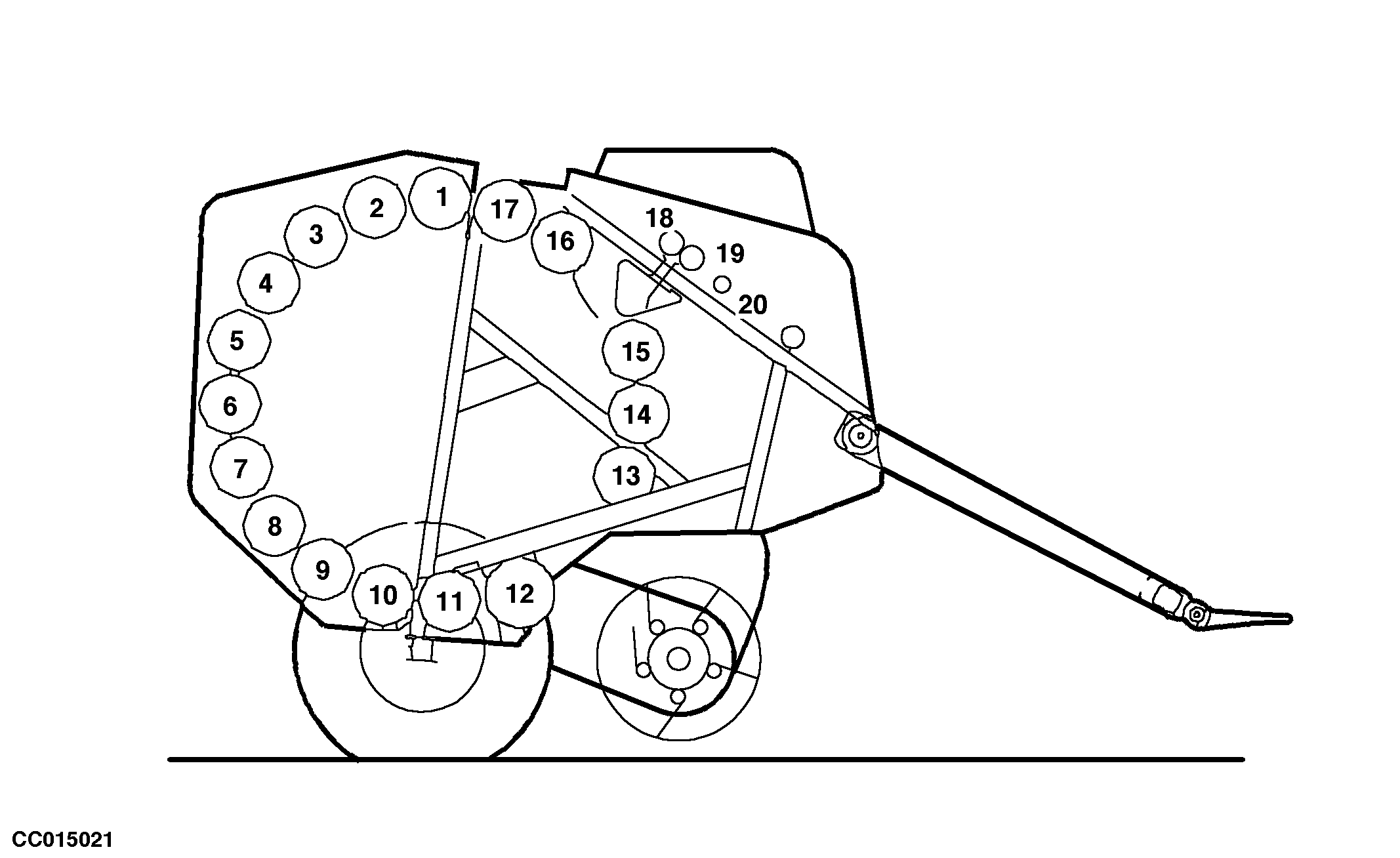

Baler Roll Numbering

1-Upper gate roll

2-9-Intermediate gate rolls 10-Lower gate roll 11-Lower front frame roll 12-Starter roll 13-Intermediate front frame roll

14-Intermediate front frame drive roll 15-Intermediate front frame roll 16-Intermediate front frame roll

17-Upper front frame drive roll 18-Galvanized net feed roll 19-Rubber coated net feed roll 20-Net idler roll1

NOTE: Numbers shown above must not be used when ordering roll replacement parts. Always refer to relevant parts catalog.

¹Except for baler with CoverEdge net tying device
