Tightening Roll Sprocket Fixing Nuts

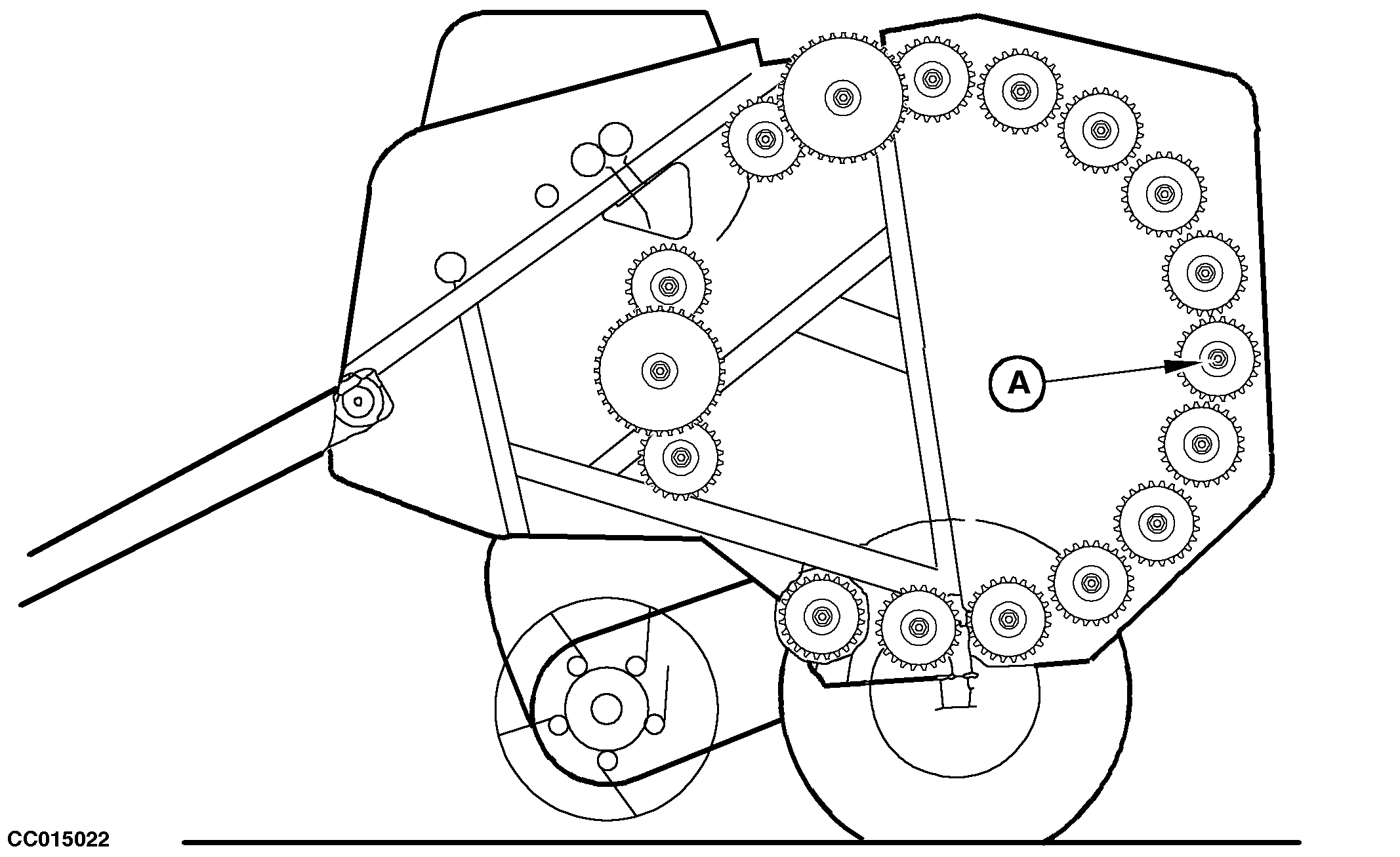

A-Fixing nut

Roll sprocket fixing nuts (A) require specific torques. Tighten all M24 nuts (A) to 550 N·m (398 lb-ft).

Tighten all M30 nuts (A) to 850 N·m (616 lb-ft).

OUCC006,00010D9 -19-02FEB07-1/1
