Raising/Lowering Rotary Feeder Pickup (Baler without BaleTrak Plus)

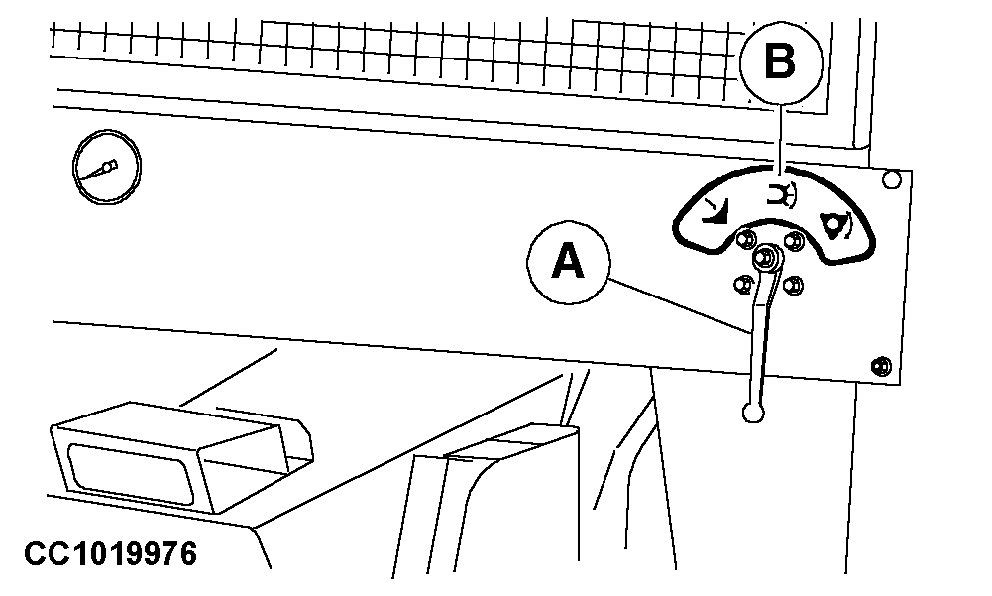

Turn three function valve lever (A) in position (B) to raise or lower the pickup.

Act on selective control valve lever of the tractor to raise or lower the pickup.

A-Three function valve lever
B-Position to raise or lower the pickup

OUCC006,00010DE -19-12JAN07-1/1
