As Required - Refilling Multiluber Chain Oiling System Reservoir

Depending on the pump flow adjustment, refill reservoir as required.

Specification

Oil Reservoir (up to S.N. 48999) -Capacity 4 l (1 US gal)
Oil Reservoir (from S.N. 50000 to S.N. 58999) -Capacity 2 l (0.5 US gal)
Oil Reservoir (from S.N. 60000) -Capacity 4 l (1 US gal)

Use oil specified under "Multiluber Chain Oil" in this Section.

IMPORTANT: Never use any other type of oil.

CC1028454

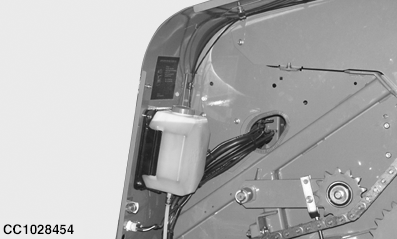

4 L (1 US gal) Oil Reservoir Shown

OUCC006,00010E0 -19-23NOV06-1/1
