Channels 006 and 007: Calibration of Bale Shape Potentiometer (if equipped)

"CH006" allows to set the position of right bale shape potentiometer and "CH007" the left bale shape potentiometer.

The adjusting procedure is the same for both sides. Use the appropriate channel for each side.

To adjust the potentiometer on the left side, remove shield.

Open the rear gate.

Lock gate in "open" position. (See "Gate Lock Valve" in "Operating - General Purposes" section).

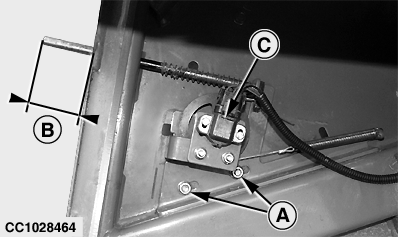

Loosen attaching screws (A) to obtain a distance (B) of 55 mm (2.16 in.).

Tighten attaching screws (A).

CC1028464


A-Attaching screws
B-55 mm (2.16 in.)
C-Right Bale Shape Potentiometer

OUCC006,00010E7 -19-23NOV06-1/2

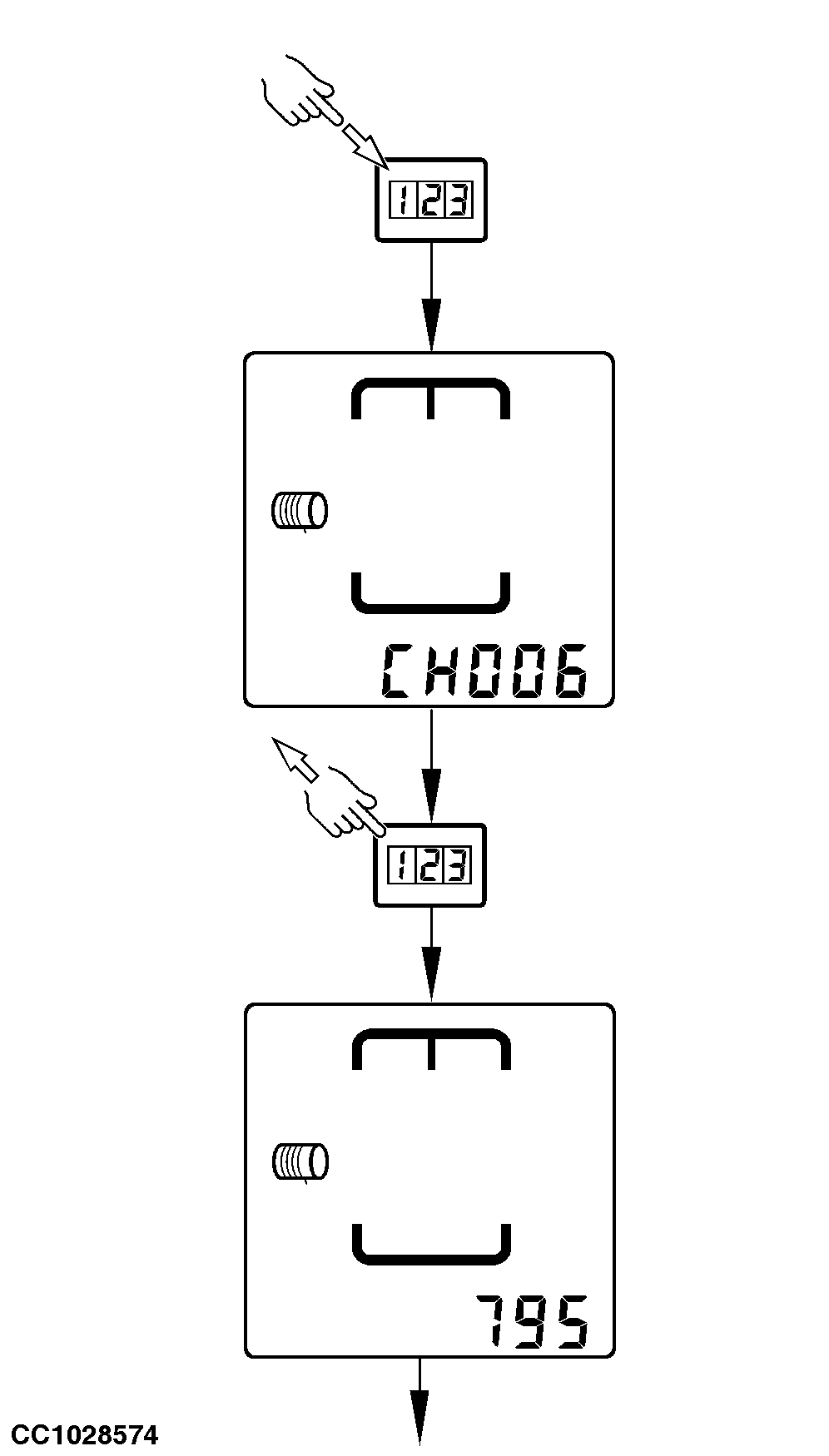

Press "PLUS" key to display the corresponding setting value.

Loosen the two mounting screws (B), then rotate the potentiometer (A) so that monitor beeps continuously and LCD screen displays the value 795.

Tighten mounting screws (B).

Repeat procedure for the other side.

Reinstall shield.


A-Right bale shape potentiometer
B-Mounting screws

CC1028574
CC1028465

OUCC006,00010E7 -19-23NOV06-2/2
