Loading Net Roll (Baler with Standard Net Tying Device)

causym CAUTION: Before installing net roll, disengage PTO, engage parking brake, shut off tractor engine and remove key. Wait for all moving parts to come to a standstill.

1. Load net roll in net box.

NOTE: Net box (A) can only take one net roll at a time for the net tying process.

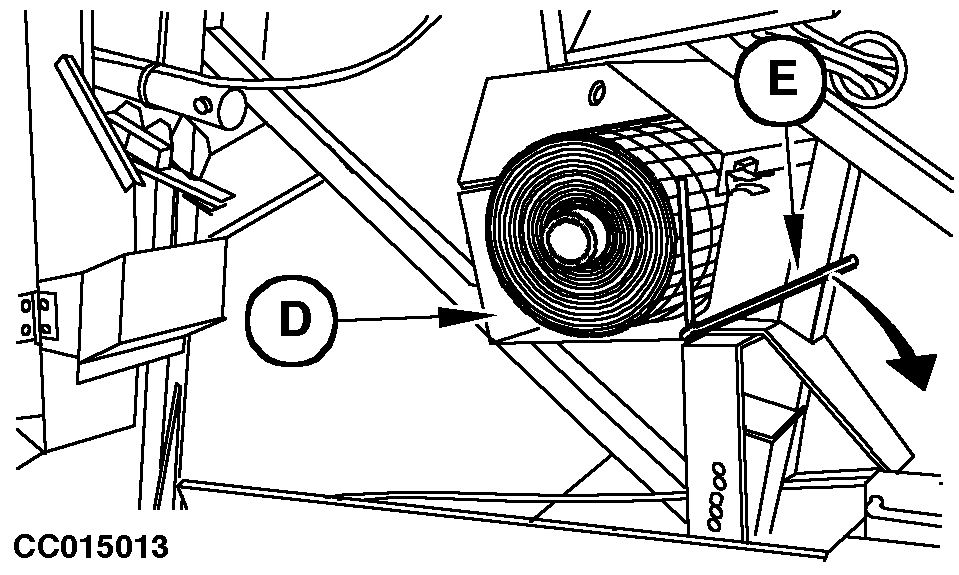

Twine box compartment (D) can also be used to store a second net roll. Move twine ball separator lever (E) to down position before sliding net roll in the twine box compartment (D).

Using foot steps, climb on the machine to open the upper cover (B).

NOTE: The net roll brake (C) is lifted all the way up when opening the upper cover (B).

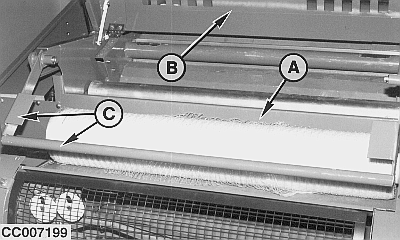

Fully open right door of the baler, then slide net roll through the net box (A) so material will be pulled from the back of the roll.

CC007199
CC015013


A-Net box
B-Upper cover
C-Net roll brake
D-Twine box compartment
E-Separator lever

OUCC006,00010EA -19-22JAN07-1/4

2. Release net feed roll brake to allow feed rolls to rotate.

a. With BaleTrak monitor or ELC Plus monitor with Net/Twine tying switch on wiring harness:

Extend the net actuator in middle position.

Turn off the monitor.

b. With ELC Plus monitor with Net/Twine tying switch on monitor:

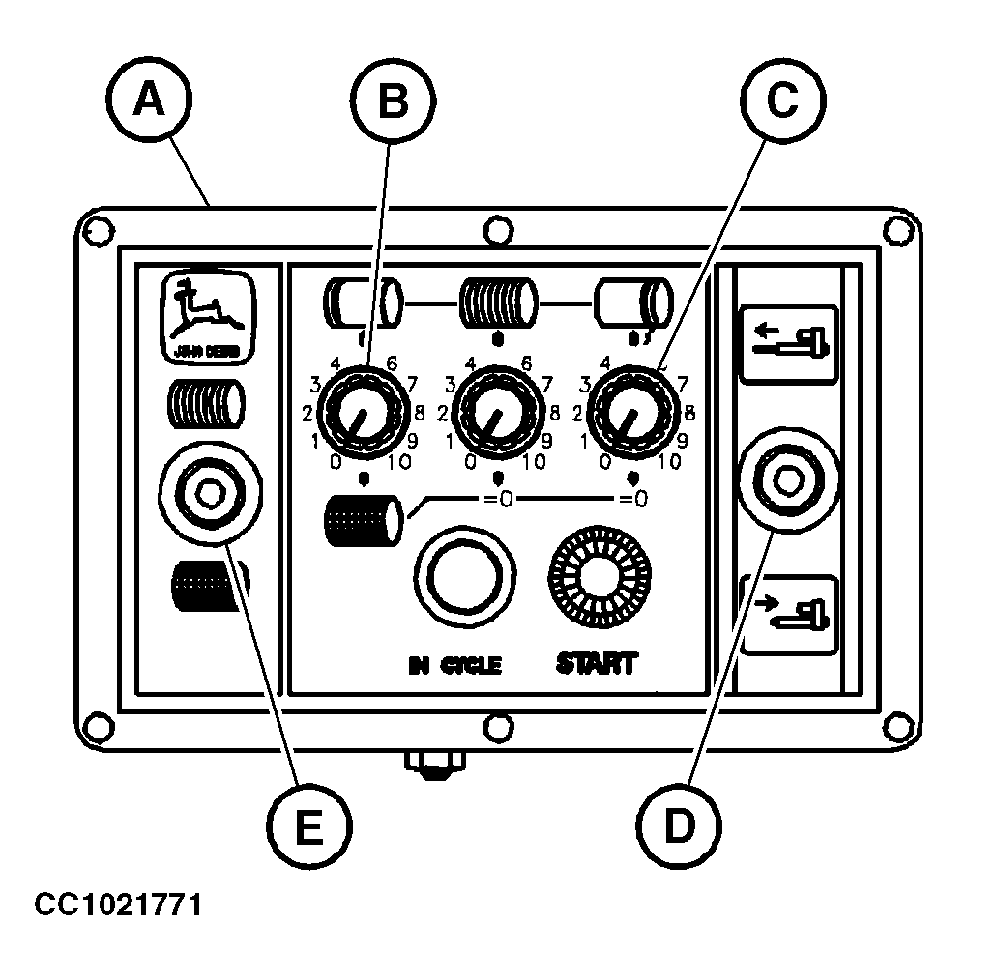

Move switch (E) in Net tying position.

Turn actuator positioning potentiometer (C) on 10 and press start button to place automatically the net actuator in middle position.

Move switch (E) to OFF position.

3. Check rotation of net feed rolls.

CC1021771


A-ELC Plus Monitor
B-Net tie density potentiometer
C-Actuator positioning potentiometer
D-Manual control switch
E-Net/Twine tying switch

OUCC006,00010EA -19-22JAN07-2/4

4. Route net through feed rolls.

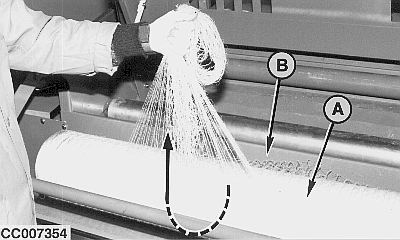

Unroll 60 cm (24 in.) of net and make a loop at the end of it.


A-Net roll
B-Net box

CC007354

OUCC006,00010EA -19-22JAN07-3/4

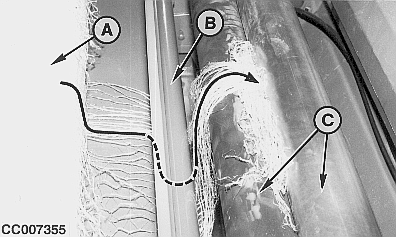

Route net (A) under net idler roll (B) and place the loop of net just between the two net feed rolls (C).

NOTE: Do not thread more than 25 mm (1 in.) of loop between the two rolls (C).

Close upper cover and right door of the baler.

Retract net actuator with monitor.

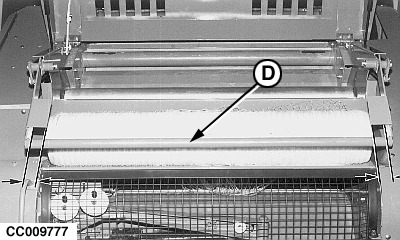

IMPORTANT: When closing upper cover, always take care that net roll is centered on the net roll brake (D).

It is advisable to take net material off feed rolls at the end of each day! This will prevent net material from incrusting in rubber roll (C), thus avoiding start-up problems. Take net material off rubber roll each time baler is used in twine tying mode.
