Yearly - Wheels and Bale Shape Indicator

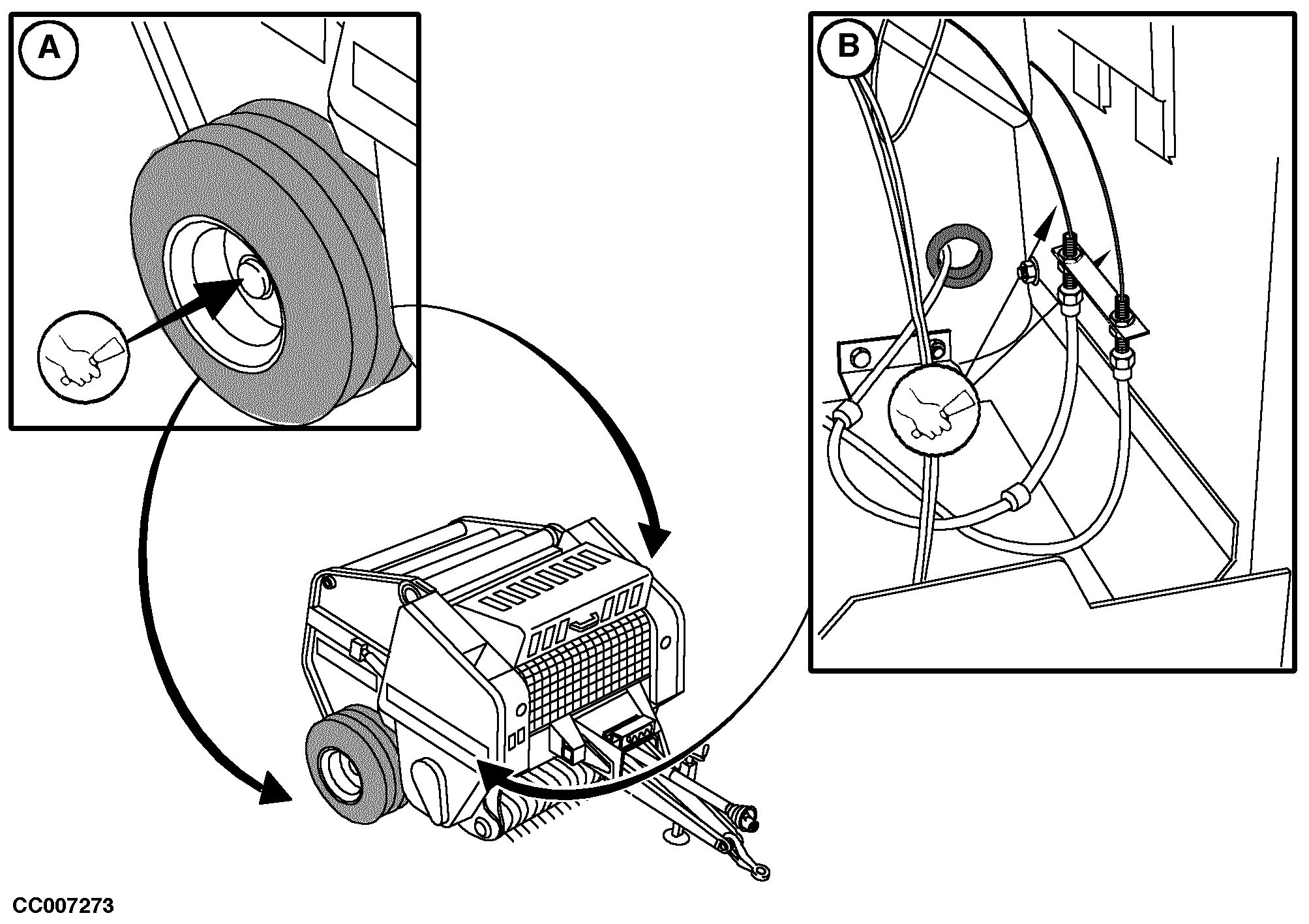

CC007273


A-Wheel Bearings

B-Bale shape indicator bowden cables



Remove wheels. Clean bearings.

Lubricate with John Deere GREASE-GARD.

Repack and adjust bearings.

Tighten nuts to the following specification:

Specification

Wheel Nut (Baler without Brake) -Torque 115 N·m (85 lb-ft)
Wheel Nut (Baler with Brake) -Torque 210 N·m (155 lb-ft)

Remove cables. Clean, lubricate and adjust cables.

Lubricate with John Deere GREASE-GARD.

OUCC006,00010F4 -19-11JAN07-1/1
